12V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera

12V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera

12V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera
Product Details:
Contact Now
Detailed Product Description
High Light:

security camera power supply

,

Worldwide power supply

12V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera





Quick Detail:



12V30A  CCTV power, 18 channels output, Independent LED indicator with each output. 100-240VAC or115V/230VAC input.
Brand Name :  W&T





Competitive Advantage:



High efficiency power
LED indicator
Independent LED indicator with each output
Over load & short circuit protection
100% full load burn-in test
2 Years warranty




Application:


It’s suitable for an extremely wide range of applications, including:
• shelter camera  adapter
• Wireless  CCTV camera charger
• waterproof infrared camera adpater
• Wireless Burglary Alarm charger
• Digital camera
• Electronics Toy
• IP camera adapter
• GSM alarm system adapter
• intercom system adapter
• CCTV Camera , IP Camera , PTZ ,IR Illuminator , DVR,LED Dricer ,Access Control;
Building visual system power supply,Illuminator system etc.




Specification:




Model No.

W&T-TVP1230-T18 (18 Channel output)





Outputs channels

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18



Output

DC Voltage (V)

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V



Rated

Current (A)

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A

1.66A



LED indicator

LED



Ripple wave

& noise(MV)

120mV



Voltage

Accuracy(%)

±5%



Total output current

30.0A



Thermal Cutoffs Protection(TCO)

Each output has independent PTC fuse and LED indicator , when problem occurs, only affect the independent output ,other output still working .




Rise time

1800ms,23ms/230VAC        4000ms,30ms/115VAC at full load



Hold up time (TYP.)

80ms/230VAC    14ms/115VAC at full load



Input

Volrage range

115V / 230V AC For Switching;



Frequency range

47~63Hz



Efficency (Typ.)

>80%



Protection

Over load

110-180%rated output power ,protection type:hiccup mode,recovers automatcally after fault  condition removed



Over Current

When the over current occurs(Average output current 130-150%), the power supply will automatically switch to self-protection status, when condition removed,then switch back to normal .



Over voltage

0ver voltage set : 120-140% rated voltage



Short circuit

 When short condition occurs, independent PTC fuse will open the circuit,when condition removed , PTC fuse will automatically back to close .



Environment

Working Temp

﹣20~﹢60℃



Working humidty

20~90%RH, non-condensing



Storage temperature

﹣40~﹢85℃ ,10~95%RH



Withstand voltage

I/P~O/P:3KVAC    I/P~FG:1.5KVAC   O/P~FG:0.5KVAC



Isolation resistance

I/P~O/P ,  I/P~FG ,  O/P~FG:100M Ohms/500VDC/25℃/70%  RH



EMI EMISSION

Compliance to EN55022(CISPR22) Class B



EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204, light industry level , criteria A



Others

MTBF

≧100K hrs.    MIL-HDBK-217F (25℃)



Dimension

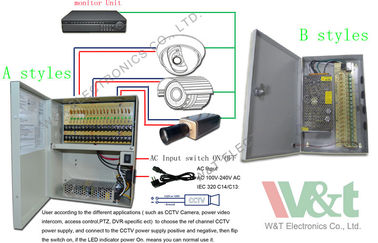

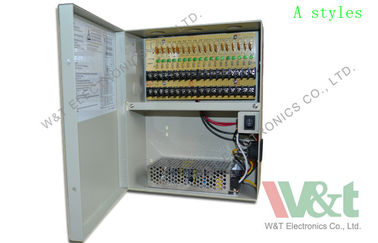

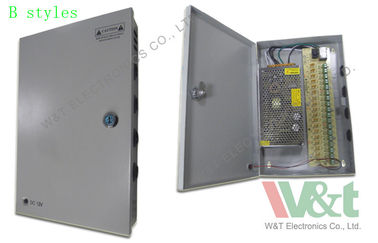

A: 255*208*90mm (L*W*H)    B: 315*205*52mm (L*W*H)



Packing

0.60Kg:5PCS/3.0Kg   (530*300*240MM)




Mechanical  spec

12V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera 012V 18 Channel Linear Regulated High Voltage Power Supply For Digital Camera 1
