Name: 12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones
Brand: Shenzhen YONP Power Co.,Ltd
SKU: RT-WMA-1200050
Availability: InStock

Home Products Wall Mount Power Adapter

12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	RT-WMA-1200050

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Environment-friendly PE bag, Master Carton, 200 PCS/Carton
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs per month

Contact Now

Detailed Product Description

AC Cable:	1.2M	Application 1:	Personal Stereo
Application2:	Telephone Charger	Application 3:	Adapter For Game Machine
Application 4:	Power Adapter For Repeater	Application 5:	Charger For Cell Phones
MTBF:	50000 Hours	Output:	12V
Output Power:	6W	Product Name:	AC To DC Power Adapter
Highlight:	ac to dc power converter , wall plug adapter

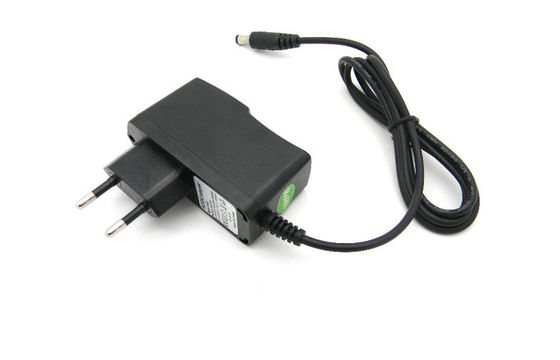

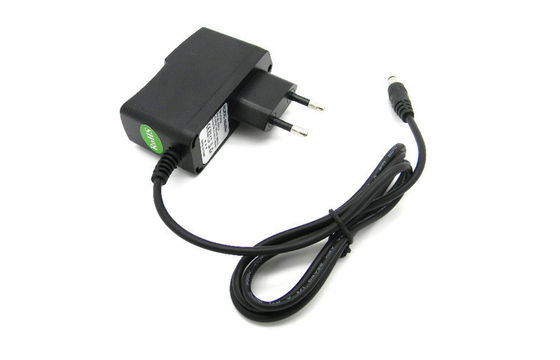

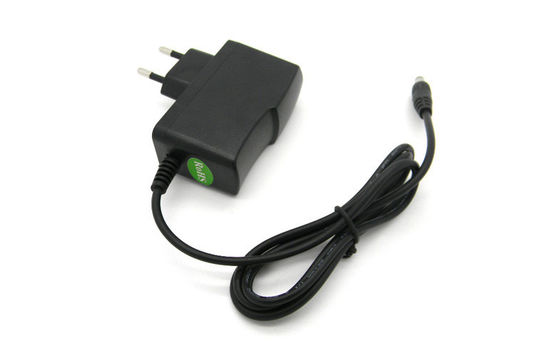

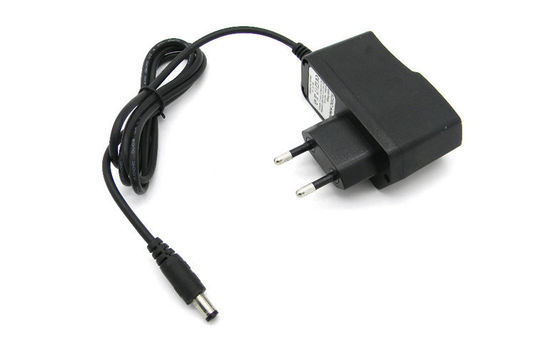

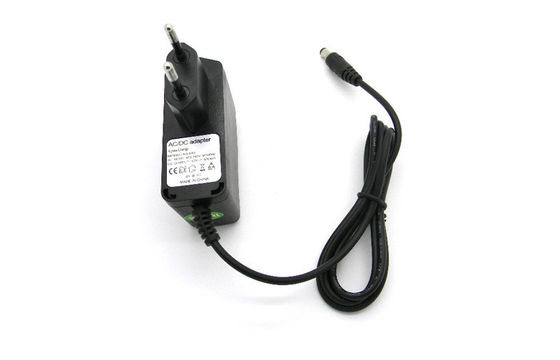

EU Plug 12V 500mA Wall-mount Power Adapter Acoustics Power Supply DC Tip 5.5x2.5mm

Applications:

be available for Telephone charger , wireless telephone, CD, DVD devices, interphone, electronic organ etc.

Description:

12V,500mA Wall mount power adapter, DC tip 5.5x2.1mm, with CE, RoHS, FCC, UL, SAA certificates. DC cable 24AWG, 1.2M length for different kinds of electronic devices usage.

Input: AC100-240V, 0.2A max.

Frequency: 50/60Hz

Output: DC12V, 500mA

DC Cable: 24AWG, Copper wire, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>78%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Compact design, light weight, easy to carry.

-Approval: CE, RoHS, FCC

-Warranty: 2 years

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.3A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	500mA
	Rated Power	6W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
