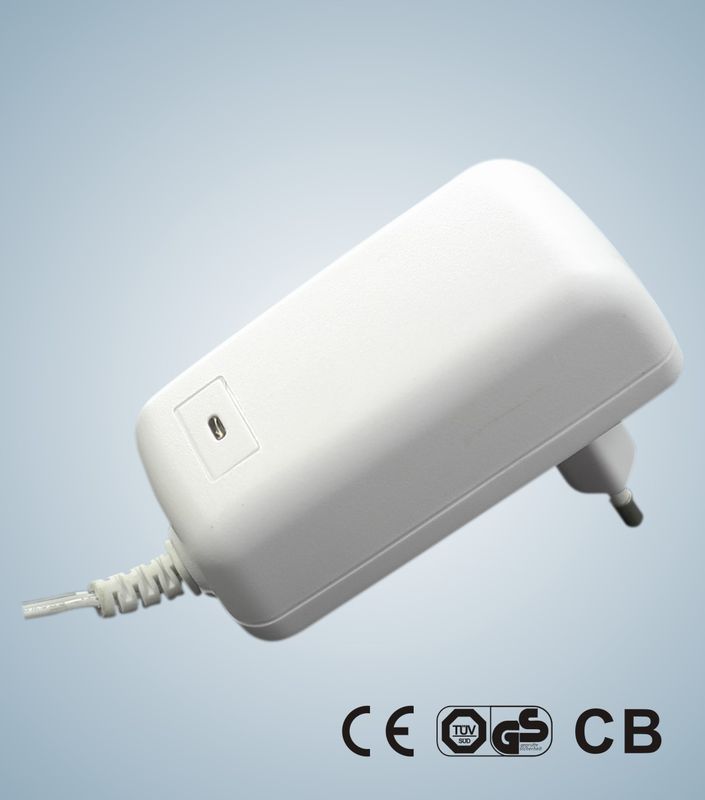

20W KSAP020xxxyyyHZ Switching Power Adapters with 12V-24VDC 0.01-1.6A CB , CE,GS Safety Approval

20W KSAP020xxxyyyHZ Switching Power Adapters with 12V-24VDC 0.01-1.6A CB , CE,GS Safety Approval

  • 20W KSAP020xxxyyyHZ Switching Power Adapters with 12V-24VDC 0.01-1.6A CB , CE,GS Safety Approval
20W KSAP020xxxyyyHZ Switching Power Adapters with 12V-24VDC 0.01-1.6A CB , CE,GS Safety Approval
Product Details:
Place of Origin: Guangdong, China
Certification: CB , GS , CE
Model Number: 20W KSAP020xxxyyyHZ
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

switching power supply adapter

,

switching adaptor power supply



20W KSAP020xxxyyyHZ Switching Power Adapters with 12V-24VDC 0.01-1.6A   CB , CE,GS Safety Approval used for Set-top-box ADSL UL60950 approval



Brand Name:
Input: •Input  Voltage : 90 to 264 VAC
•Frequency  :      47-50/60-63hz
•Input   current : 0.6A (Max)
•Inrush current : 60A Max. 230VAC at max. Load
•Leakage current:0.25 mA Max
Output: •Over voltage protection
•Over current protection
 at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1,BS EN 60950-1:2006
Certificates and approvals: •CB , GS , CE
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
EMS immunity: •ESD   Tes :EN 61000-4-2
•RS     Test:EN 61000-4-3
•EFT    Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS     Test: EN 61000-4-6
•DIP     Test:EN 61000-4-11
Key Applications: Key features for the KSAP020xxxyyyHZ
•compact design,Outline: 88*43.5*31mm,Weight:110g
•Green power, full complies with CEC level V , MEPS V EUP2011
•complies with K.21 Enhance level(6KV surge)
•EN60950 ITE Safety Approvals
•Ambient Temp Range(0℃ to 40℃)
•Fixed frequency switching is mandatory
•ESD:air discharging ±15 KV,contact discharging ± 8 KV
•Reliability level of MTBF 50k hours @ 25° C

Key Applications for the KSAP020xxxyyyHZ
•It’s suitable for an extremely wide range of applications including:
•General I.T.E Use
•Set-top-box
•ADSL
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
