| Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
 |
| Place of Origin: | Guangdong, China |
| Certification: | CB , GS , CE |
| Model Number: | 20W KSAP020xxxyyyyHEC |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag + White box |
| Delivery Time: | 35days |
| Payment Terms: | T/T |
| Supply Ability: | 1Million/Month |
| High Light: | Universal Power Adapters,universal notebook power adapter |
||
|---|---|---|---|

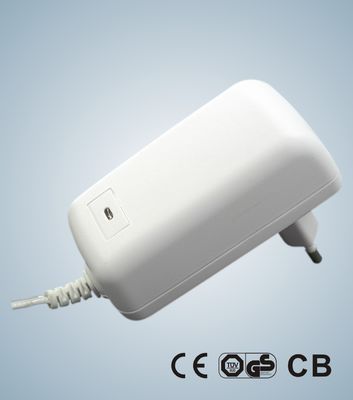

20W KSAP020xxxyyyyHEC Switching Power Adapters with 12VDC 0.1-2A CB , CE,GS Safety Approval for General I.T.E Use
| Brand Name: | • |
| Input: |
•Input Voltage: 180 to 264 VAC •Frequency : 47-50/60-63hz •Input current : 0.6A (Max) •Inrush current : 60A Max. 230VAC at max Load •Leakage current: 0.25 mA Max |
| Output: |
•Over voltage protection •Over current protection at 110-200% of lo and Auto-recovery •Over temperature protection •Electronic short circuit protection •Operating temperature 0~40℃ Free convection •Operating humidity 10-90% RH Non Condensing •Sea level Non-operating temperature -20~ 80℃ |
| Safety standards: |
•Information technology equipment •IEC/EN 60950-1,BS EN 60950-1:2006 |
| Certificates and approvals: | •CB , GS , CE |
| EMI Emission: |
•Radiation Test&Conduction Test:EN 55022/FCC Part15 •Harmonic Test:EN 61000-3-2 |
| EMS immunity: |
•ESD Test:EN 61000-4-2 •RS Test: EN 61000-4-3 •EFT Test:EN 61000-4-4 •Surge Test:EN 61000-4-5 •CS Test: EN 61000-4-6 •DIP Test:EN 61000-4-11 |
| Key Applications: |
Key features for the KSAP020xxxyyyyHEC •compact design,Outline: 88*43.5*31mm,Weight:110g •Green power, full complies with CEC level V , MEPS V EUP2011 •complies with K.21 Enhance level(6KV surge) •EN60950 ITE Safety Approvals •Ambient Temp Range(0℃ to 40℃) •Fixed frequency switching is mandatory •ESD: air discharging ±15 KV,contact discharging± 8 KV •Reliability level of MTBF 50K hours @ 25° C Key Applications for the KSAP020xxxyyyyHEC •It’s suitable for an extremely wide range of applications including •General I.T.E Use •Set-top-box •ADSL |
| Payment Details: | •Payment Terms: T/T,negotiable for OEMs |
| Main Export Markets: |
• Eastern Europe • North America • Mid East/Africa • Central/South America • Asia • Western Europe • Australasia |
