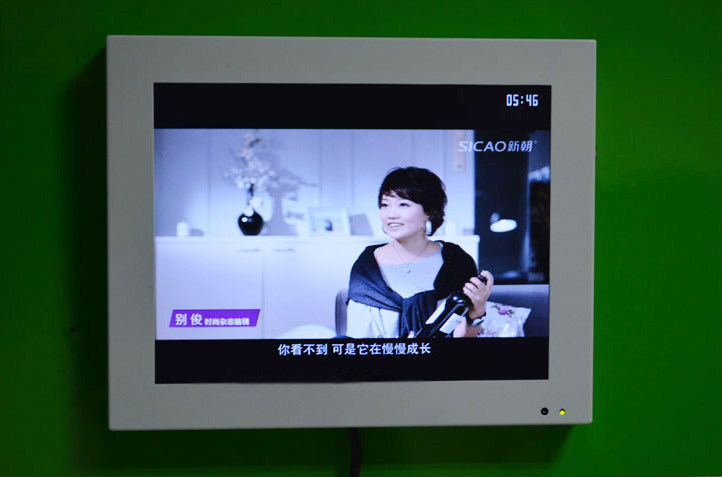

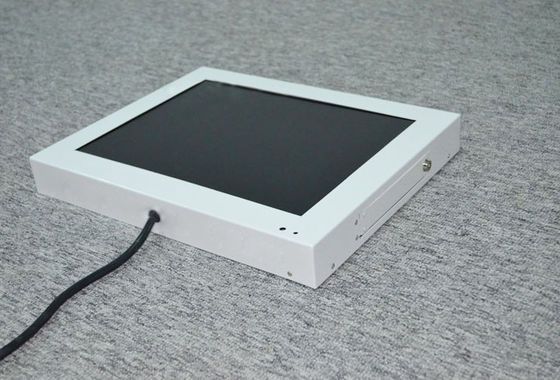

22 Inch Wall Mount LCD Digital Signage , Outdoor LCD Advertising Player
1, support 2 SD card, and one is micro-SD/ TF card inside.
2. Support memory card capability: 32MB-16GB, such as SD card and U-disk etc.
3. Support file playing format: H.264, H.263, FLV, MP4 (AVI: DIVX/XVID), MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1), MP3, JPG etc.
4. Support video playing resolution: up to high definition (1280X720p).
5. Audio output: stereo L/R, 5W*2, 8Ω
6. Power supply for Adapter: AC 110V – 240V 50HZ/6HZ; output working voltage: DC 12V 5A.
1. Supply excellent software: content management tool, which can be use for making very fine multi-window playing advertising file package,if you don’t need this tool, you can use the product’s “Easy mode”.
2. Design split screen position and size for displaying (video window, photo window, rolling caption window and background photo), the position and size of every window are not limit.
3．Set time to broadcast advertisement, the time can be set by date and by weekly.
4．Support auto power on/off function

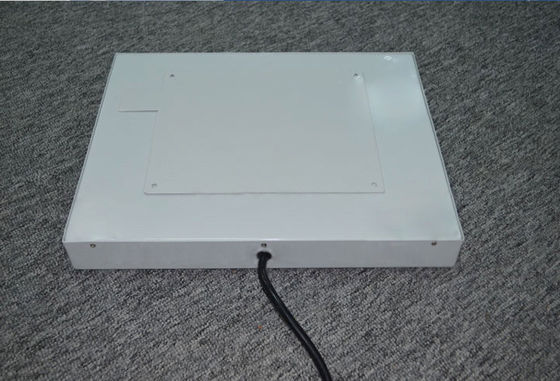

5. Outer shell Adopts Super Good Looking Design, which is made by extra quality black plastic material, it can be wall mounted, also can table standing playing.
6. With a protection layer of ultra-thin, high light tempered glass (thickness is 2mm) on the surface of the LCD screen.
7. Brands of LCD screen for Samsung, LG, Chi Mei, AU, HSD etc, A Class 335 standard, full new and factory original packing screen.
8. Support TF/micro-SD card slot inside, SD card slot, USB2.0 port and Mini-USB port, and using TF, micro SD and SD card as the source of programming, play high reliability.
9. Can be protected by input password, you can set the new password at random.
10. Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
11. Build-in clock and calendar function in the system of player.
12. Support shockproof and dustproof function.
13. Storage Temperature: -7 to 65 Celsius degree, Normal Working Temperature: -4 to 65 Celsius degree.
14. Audio system: build-in two speakers stereo, rated power is 2 x 2W, 8Ω.
16. Support software updating function.
15. Multi-language OSD: English, Chinese
16. With CE certificate and ROHS Report.
17. Power supply for Adapter: AC 110V – 240V 50HZ/6HZ; output working voltage: DC 12V 5A.
Technique Parameter for LCD Panel:
1. Panel Size: 22 inch real color LCD screen
2. Aspect Ratio: 16:10
3. Active Area: 473.76mm (H) x 296.1mm (V)
4. Max. Resolution: 1680 x 1050
5. Dot Pitch: 0.282mm (H) x 0.282mm (W)
6. Number of Color: 16.7M
7. Brightness: 400cd/m2
8. Contrast Ratio: 500:1
9. Responsive Time: 8ms
10. Panel Life: above 50000 hours
1. Packing list: one unit 22 inch LCD media player, 2pcs keys, 1pcs English manual, 1pcs remote controller.
2. Packing size: 680mm*145mm*535mm
3. Net weight: about 9.2kg
4. Gross weight: about 10.4kg
5. Volume Weight: 8.79kg
WIFI, touchscreen, human sensor, webcamera, microphone, etc...
