24V 2A Desktop Power Supply Adapter For Display Device , High Efficiency 48W

24V 2A Desktop Power Supply Adapter For Display Device , High Efficiency 48W

24V 2A Desktop Power Supply Adapter For Display Device , High Efficiency 48W
Product Details:
Contact Now
Detailed Product Description
High Light:

external power supply

,

ac power adapters

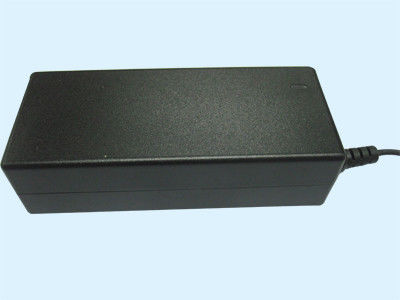

24V 2A Desktop Power Supply Adapter For Display Device , High Efficiency 48W


Feature:

. Universal AC Input / Full Range
. High Efficiency , Low Temperature
. Protections : Over Voltage , Overload , Short Circuit
. 100% Full Load Burn - in
. 2 years warranty


Description:
24V2A 48W Desktop Power Adapter For Display Device

Electronics Specification :

Input Voltage Range:

90~264Vac

AC Input Current:

1.0A

Frequency:

50/60Hz

Output Voltage:

24.0Vdc

Output Voltage Range :

22.8Vdc to 25.2Vdc

Maximum Output Current :

2.0A

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)114*(W)50*(H)30.5mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible


Applications:

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
