| Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
 |
| Place of Origin: | Shenzhen,China |
| Brand Name: | RAYTOP |
| Certification: | CE, RoHS, FCC |
| Model Number: | ETZ1800250 |
| Minimum Order Quantity: | 1K |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White box/Master Carton |
| Delivery Time: | 15-20 work days. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200,000 Pcs monthly. |
| AC Cable: | 1.2M | Application: | Camera, LED Light, LCD TV |
|---|---|---|---|
| Approval: | CE, RoHS, FCC, UL, SAA | Cable Material: | Copper |
| DC Cable: | 1.2M | EMI Standards: | FCC Part 15B |
| Feature: | Constant Current | Input: | AC100-240V |
| Output: | 18V 2.5A | Output Power: | 45W |
| Plug: | EU, UK, US, CCC, SAA | Product Name: | Desktop DC Power Supply |
| Protection: | Short Circuit, Over Voltage, Over Current | Operating Temperature: | 0~40℃ |
| High Light: | external power supply,ac power adapters |
||
Quick Detail:
Switching mode power adapter, DC 18V 2.5A, desktop style in conformity with CE, RoHS, FCC certification.
Specs:
Input: AC100-240V, 0.2A max.
Frequency: 50/60Hz
Output: DC18V, 2.5A
DC Cable: 20AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
-Worldwide input voltage 100-240Vac;
-High efficiency:>83%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description:

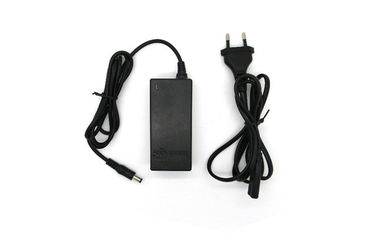

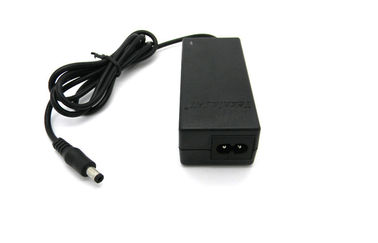

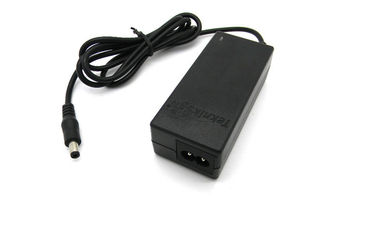

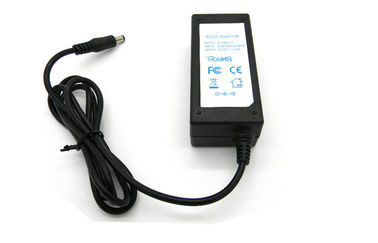

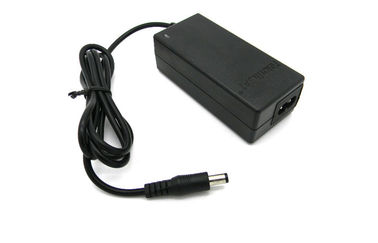

This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note: indoor use only.
Applications:
used for Digital Camera, CD-ROM HUB ADSL AP, Communication Terminals,Seeing and hearing product,LED Liquid-crystal display,Other Portable Device or Machines.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC18V |
|
Rated Output Current |
2500mA |
|
|
Rated Power |
45W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.5W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
10mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
|
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
