60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer

60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer

  • 60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer
  • 60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer
60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer
Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: High Efficiency Star Series 10-200Kva
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Three Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

3ph ups

,

3 phase ups systems



60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer

Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)



Quick Overview

1: UPS power specially designed for Industry, Power plants & substation automations, steel industry, large-scale

    manufacturing industry and petrochemical industry etc

2: Industrial power supply with 380VAC 400VAC 415VAC Input and Output, and with DC Input 384Vdc 432Vdc 480Vdc

3: UPS with EMC/EMI protection

4: True Galvanic Isolation



Key Features



1. Adopting the advanced DSP technology and on-line double conversion IGBT technology
    Design for the most demanding applications.
2. DC Input with 384/432/480VDC design
3. Overall Protection: To protect against the over temperature, overload, short circuit, surge, lighting and
    The poor input to ensure the reliable operation of the UPS and load.
4. True Galvanic Isolation
    Design to provid sufficient protection to the UPS and load.
5. Fast transfer time between inverter and bypass
     The transfer time from inverter to bypass is zero second, from bypass to inverter is less than 0.002 second, such

     guarantee the true continuous and uninterruptible power supply to the load during the UPS Maintenance.
6. Human Operation Design
     Easy operation and without program constrain, any operational mistake made by the user will cause No harm to

     the unit.
7. Advanced Parallel-Redundant Technology
    Adopting the advanced technology of Parallet and N+1 Redundancy to meet the requirement of
    Multiple UPS units parallel-operation.
8. Cool Start Function
    Can be started without AC mains (with battery only) and protected from high surge current in DC loop.
9. Two-Phase locked loops and highly-efficient filter simultaneous curcuit are completely compatible with Generator
10. Chinese/English LCD display panel
      To display the UPS status, input voltage, output voltage, bypass voltage, Input frequency, output  Frequancy, load

      capacity, temperature and historical data, etc...
11. Plug & Play Modular design: Maintennace will be easier and faster, and the MTTR will be shortened to Half an hour.
12. Intelligent Interface: Including dry contacts, RS485/RS232, MODBUS, support " Duty - Free ".
13. EMC/EMI protection, EN5009-2 approved and also compatible with GB/T17626 approved
14. Advanced Battery Management Modular (Option)  For the test, maintenance, alarm monitoring of the battery.
15. Modularization and Integration



Application

Industry, Power plants & substation automations, steel industry, large-scale manufacturing industry and petrochemical industry etc



Technical Specification



High Efficiency Strar Series HE33 10K-200K
Model HE33 Series UPS
Capacity (VA) 10K 15K 20K 30K 40K 60K 80K 100K 120K 160K 200K
Noninal output capacity 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW
Operate type Double conversion online type
Input Nominal voltage 220V/380, 230/400, 240/415V
Voltage Tolerance 380/400/415V±25%
Frequency 50Hz/60Hz±5%

Permitted Frequency

 Tolerance

±2% (selectable from ±1% to 5% from the front panel)
Soft start 0-100% in 30" (selectable)
Input power factor 0.95(with input filter)
Standard features Back Feed protection separable bypass line
  Phase Three phase +N+G
Output Voltage 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)
Frequency 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode)
Static stability ±5% in 19ms
Distortion Linear load <3%, non linear load<5%
Power factor 0.8
Output wave Pure sine wave
Crest factor 3:01
Battery voltage Standard battery voltage 384V 432V 480V
Floating charge 432V 486V 540
Terminal voltage 336V 378V 420V
Charge current 1A-50A (Can calculate and set according to battery configuration software)

Maximum Discharge

 Current

28 42 56 85 113 169 225 282 338 381 507
Main Function Active voltage change 0-100%±5%
Instant recover time <10ms
Imbalance voltage <±5%,<±1%( Balance load voltage)
Overload capacity 125%→10min,150%→1min
Static switch Automatic
Protection UPS over current, short circuit, battery low voltage, over heat
Cold method Compel aeration ( temperature control mode)
Noise 60-65dB
Display LED,LCD display
Remote signalling Voltage-free contacts
Remote commands EPO and bypass

Communication Port

(Optional)

double RS232 + remote contacts + 2 communication interface slots
Alarm Alarm with buzzer and indicators
Environment Temperature: 0-40C  Humidity: 0-90%



Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

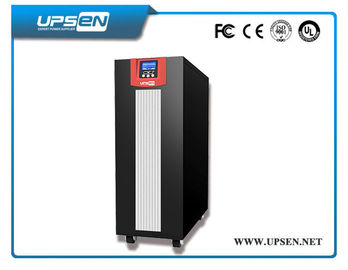

60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer 0

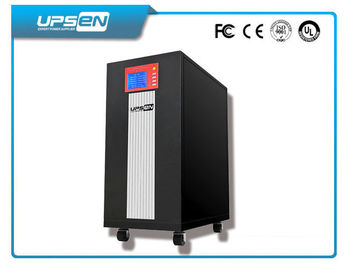

60KVA 48KW 3 Phase Uninterruptible Power Supply industrial UPS System with Copper Transfromer 1
