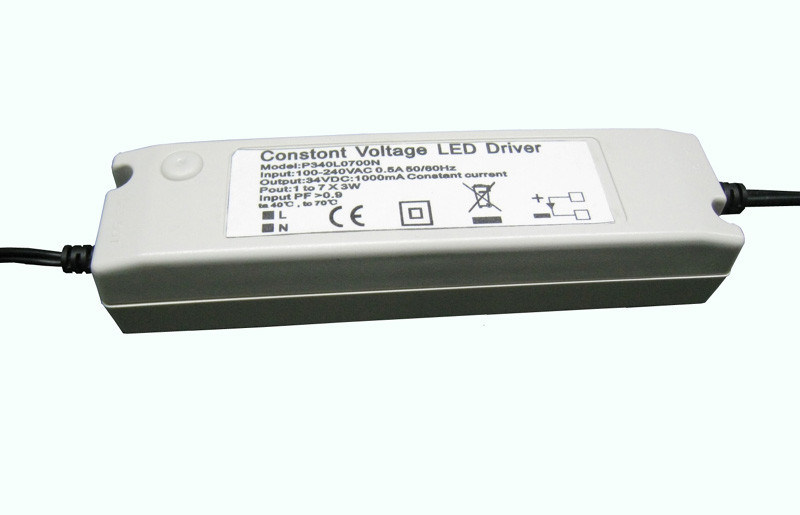

Name: 700mA Constant Voltage LED Driver 34V , Cord To Cord Type PF > 0.9
Brand: Shenzhen YONP Power Co.,Ltd
Availability: InStock

Home Products Constant Voltage Led Driver

700mA Constant Voltage LED Driver 34V , Cord To Cord Type PF > 0.9

Product Details:

Contact Now

Detailed Product Description

Highlight:

Constant Voltage Led power supply

led lighting Driver

700mA Constant Voltage LED Driver 34V , Cord To Cord Type PF > 0.9

Feature:

. Universal AC Input

. Power Factor Built In , PF > 0.9

. Protections: Overload, Short Circuit

. Cord To Cord Type

. 2 Years Warranty

Description:

AC to DC Constant Voltage LED Driver 34V 700mA PFC Built In

Electronic Specifications :
Input Voltage Range :	90~264Vac; 120~370Vdc
Input Frequency :	50/60Hz
Power Factor :	> 0.9
AC Input Current (Max.) :	0.5A/100Vac
Normal Output Voltage :	34.0Vdc
Output Current :	700mA
Power (Max) :	23.80W
Efficiency :	＞80%
Output Short Circuit Protection :	Can be Shorted without damage and auto recovery.
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60335-2-29
EMI Standard :	EN55022B
Mechanic :
Case Size :	140 * 38 * 28 mm ( L * W * H)

Applications:

Widely Used LED Lights
