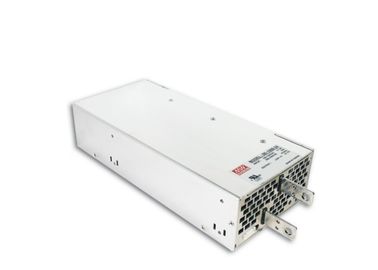

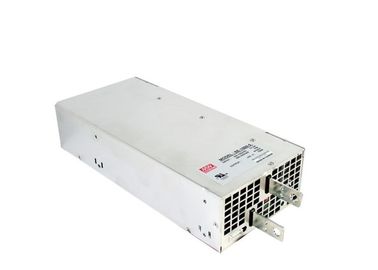

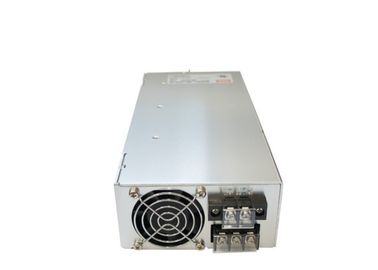

AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W

AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W

  • AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W
  • AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W
  • AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W
  • AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W
AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W
Product Details:
Place of Origin: China
Brand Name: Meanwell
Certification: CE,ROHS, TUV, UL
Model Number: SE-1000 Single Output Switching Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
DIMENSION: 278*127*63.5mm (L*W*H) PACKING: 2.5Kg; 6pcs/16Kg/1.38CUFT
Connection: Terminal Block With Cover For Input And Output (SE-1000/1500: Copper Pillars For Output) ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC Standards: Design Refer To EN55022 Class B DC Voltage: 5V, 9V, 12V, 15V, 24V, 48V
Working Temperature: -20~+60°C(600W/1000W); -20~+70°C(1500W) WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
High Light:

LED Light Power Supply

,

LED Light Driver



AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W​



Enclosed SE Series 100w-450w Miniature Features:
1. AC input selectable by switch
2. Withstand 300VAC surge input for 5 seconds (SE-200/350)
3. Protections: Short circuit / Overload / Over voltage / Over temperature (except for SE-100)
4. Forced air cooling by built-in DC fan (SE-350/450)
5. Built-in fan ON/OFF control (SE-350)
6. Built-in constant current limiting circuit (SE-200/350)
7. Withstand 5G vibration test (SE-200/350)
8. Built-in remote sense function (SE-450)
9. 100% full load burn-in test
10. LED indicator for power on
11. 2 years warranty


Enclosed SE Series 600W~1500W Single Output Features:
1. AC input selectable by switch (SE-600/1000)
AC input 180~264VAC only (SE-1500)
2. Protections: Short circuit / Overload / Over voltage / Over temp.
3. Forced air cooling by built-in DC fan

4. Built-in remote sense function

5. DC OK, remote ON/OFF control (SE-1000/1500)

6. 100% full load burn-in test

7. LED indicator for power on

8. 2 years warranty


AC input voltage range .........90~132VAC / 180~264VAC selected by switch(600W/1000W); 180~264VAC(1500W)
AC inrush current .................Cold start, 60A at 230VAC(600W/1500W)  Cold start, 55A at 230VAC(1000W)
DC adjustment range ............±10% rated output voltage
Overload protection ..............105%~125% Shut down o/p voltage, re-power on to recover
Over voltage protection..........115%~140% rated output voltage
Withstand voltage ................I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, 1 minute
Working temperature ............-20~+60°C(600W/1000W); -20~+70°C(1500W)
Safety standards ..................UL60950-1 approved
EMC standards ....................Design refer to EN55022 class B
Connection ..........................Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)

Enclosed Switching Power Supplies
SE Series:
Single Output Switching Power Supply: SE-100, SE-200, SE-350, SE-450, SE-600, SE-1000, SE-1500


Quick Details of 1000w Single Output LED Switching Power Supply:

1000W-Single Output
Model No. Output Tol. R&N Effi.
SE-1000-5 5V, 0~150A ±1% 150mV 81%
SE-1000-9 9V, 0~100A ±1% 150mV 84%
SE-1000-12 12V, 0~83.3A ±1% 150mV 85%
SE-1000-15 15V, 0~66.7A ±1% 150mV 86%
SE-1000-24 24V, 0~41.7A ±1% 200mV 88%
SE-1000-48 48V, 0~20.8A ±1% 200mV 89%



NOTE:
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. By using UVP circuit, PSU will not turn on direct by in AC continue ON/OFF condition within 5 sec.


SE-1000 Series Datasheet:



AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W 0

AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W 1

AC DC Led Power Supply Transformer Adaptor 12 Volt DC and 24 Volt DC SE-1000W 2





SE Series SE-1000 Models Available:
SE-1000-5
SE-1000-9
SE-1000-12
SE-1000-15

SE-1000-24

SE-1000-48
