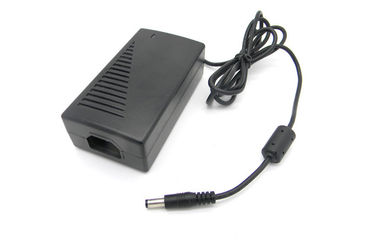

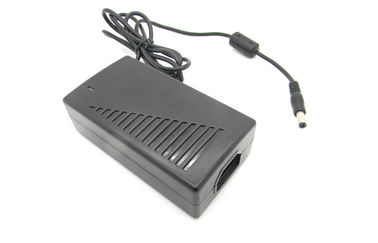

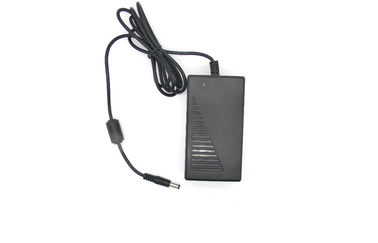

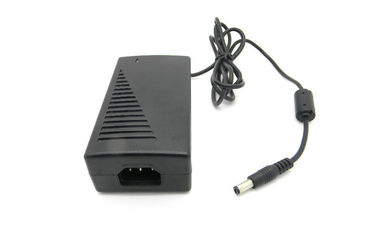

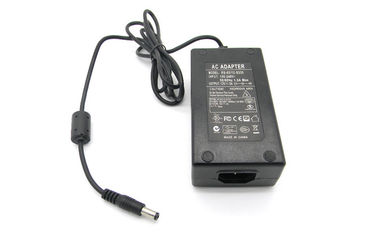

Camera External Desktop Switching Power Supply Constant Current

Camera External Desktop Switching Power Supply Constant Current

  • Camera External Desktop Switching Power Supply Constant Current
  • Camera External Desktop Switching Power Supply Constant Current
  • Camera External Desktop Switching Power Supply Constant Current
  • Camera External Desktop Switching Power Supply Constant Current
  • Camera External Desktop Switching Power Supply Constant Current
Camera External Desktop Switching Power Supply Constant Current
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETZ12005000
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: White box/Master Carton
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
AC Cable: 1.2M Application: Camera|LED Display|LCD TV
Approval: CE|RoHS|SAA Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15 Class B
Input: AC100-240V Output: DC12V
Output Power: 60W Plug: EU|UK|US|CCC|SAA
Product Name: Desktop Switching Power Supply Protection: Short Circuit|Over Voltage|Over Current
High Light:

external power supply

,

external power supply



Camera External Desktop Switching Power Supply Constant Current

Specs:



Input: AC100-240V, 0.2A max.

Frequency: 50/60Hz

Output: DC12V, 5.0A

DC Cable: 18AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC



Features:



- Worldwide input voltage 100-240Vac;

- High efficiency:>83%;

- Protection: Short circuit protection, over voltage protection, over current protection.

- MTBF: 50,000 hours.



Description:



This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note: indoor use only.



Applications:



used for All-in-One PC, Medical Devices, LCD TV, Laptops, Electronic Refrigerator, Portable DVD, Stereo, Security and Protection Products, POS system, Tax Printer, Network Equipment, Telecom equipment etc.



Specifications:







Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

0.2A

Inrush Current

30A









Output

Rated Output Voltage

DC12V

Rated Output Current

5000mA

Rated Power

60W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.







Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M



Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

24 Months



Company Information:



Company Name: Shenzhen Zhongke Huadian Technology Co., Ltd.

Established Time: 2006

Product Range: Power adapter,Power Supply,USB Charger,Power Bank,Mobile Phone Charger Adapter

Area: 2,000 Square Meter

Employee: 150~160 people

Monthly Output: 1500,000 PCS.

Main Market: North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Middle East,Africa,Oceania

Annual Turnover: 9.0Million-10Million



Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sale service



Tag:power supply,power adapter,desktop switching power supply
