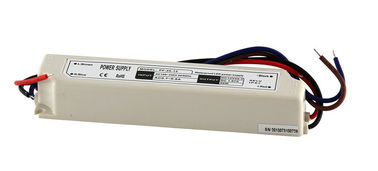

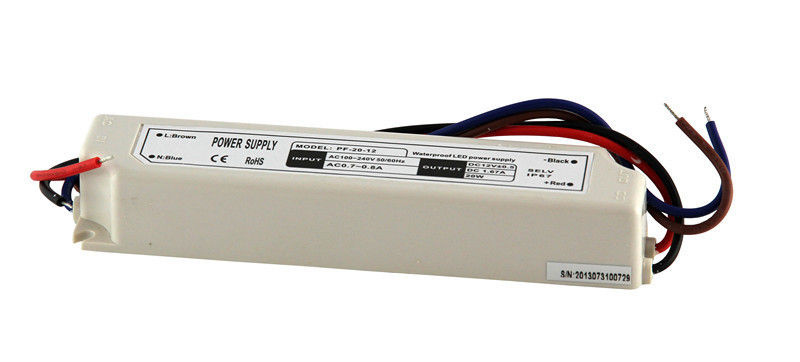

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof

  • High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof
High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof
Product Details:
Place of Origin: China
Brand Name: DongDaHua
Certification: CE,RoHS
Model Number: PF-20-12
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
Contact Now
Detailed Product Description
High Light:

waterproof led driver

,

constant voltage led drivers


High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof


Quick detail:

Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years



Description:


1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty

Brightness 12V 24V 20W Constant Voltage LED Driver /  Waterproof 12v LED Driver



Descriptions:


Parameter

Model: PF-20

DC output voltage

12V±5%

24V±5%

Rated output current

1.66A

0.83A

Output current range

0-1.66A

0-0.83A

Ripple and Noise

120mVp-p



DC output power

20W

202

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

139*30*22mm

weight

0.16 kg



Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof 0





  Quality assurance:

High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof 1


Our service:
High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof 2


Delivery:
High Efficiency Constant Voltage LED Driver Single Output 20W Waterproof 3
