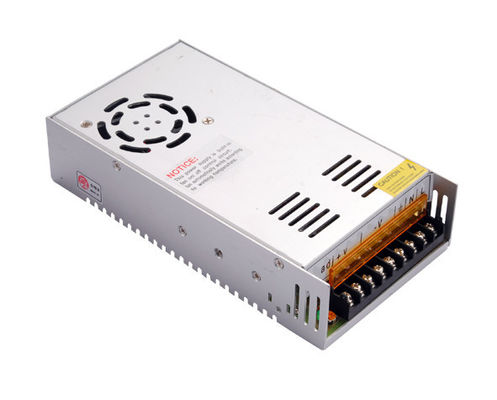

Lighting / Scanner / CCTV Power Supplies , 360W 12V DC 30A Output

LED Display / Strip / Street Light CCTV Power Supplies with 12V DC 30A Output

Quick Details:

• ​Input voltage: 100 to 240V AC, 50/60Hz
• Output voltage: 12V 30A
• Power: 360W
• Application: LED Display / Strip / Street Light

Protections:

• Overloading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
• Over-voltage protection: 130 to 150% of rated voltage
• Over-current protetion

Insulation intensity:

• Input/output: 1,500V/5mA, 60 seconds
• Input/ground: 1,500V/5mA, 60 seconds
• Output/ground: 500V/5mA, 60 seconds
• Input/output: 1,500V/5mA, 60 seconds
• Input/ground: 1,500V/5mA, 60 seconds
• Output/ground: 1,500V/5mA, 60 seconds

Environment requirement:

• Operating temperature: 0 to 40°C
• Operating humidity range: 10 to 90% RH (no freezing dew)
• Storage temperatures: -20 to 85°C
• Storage humidity range: 10 to 95% RH (no freezing dew)
• Elevation: ≤3,000m
• Weight: 300g
• EMC: EN55022 and GB3954

Our Advantages:

• Professional&experienced engineers
• Good quality
• Competitive price
• Intime service
• Free samples available
• About 10 years experiences
• OEM/ODM services are highly welcome
• Flexible to meet dynamic requirements
• High technology
• Short Lead time
• AC input power suitable for the world
• Soft-start current can reduce the AC input impact efficiency
• With short-circuit and overload protection
• Compact size ,light weight
• 100%full-load burning test
• Installed with EMI filter ,minimum wave
• Fashionable design
• Small size
• Low-ripple and noise
• High-efficiency

Some Using Details:

• Do not install power supply in locations with high humidity, dust or strong direct sunlight.
• Connect power supply to the supplied unit.
• Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
• Power supply can only be installed indoors.
• The power supply should be installed in a location with good airflow.
