Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection
Product Details:
Contact Now
Detailed Product Description
High Light:

external power supply

,

external power supply

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection



Feature:



. Universal AC Input

. PFC Function Built in, PF>0.93

. High Efficiency , Low Temperature

. Protection : Over Current , Short Circuit , Over Voltage

. Approved By :  UL CE CB C-TICK FCC

. Warranty : 2 years



Description:



Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

1.5A

PF

>0.93

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

19.0Vdc

Output Voltage Range :

18.0~ 20.0Vdc

Max Output Current :

5.0A

Efficiency :

 > 85%

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)150*(W)65*(H)35.5mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible

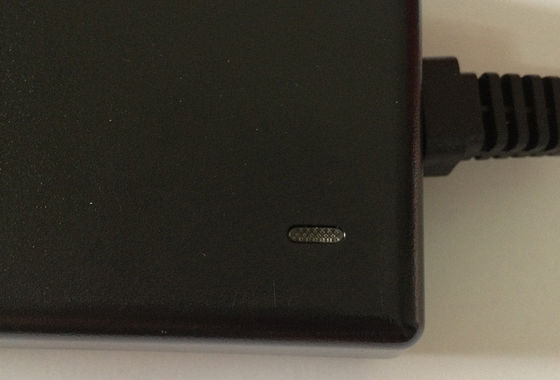

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection 0





Certificate:

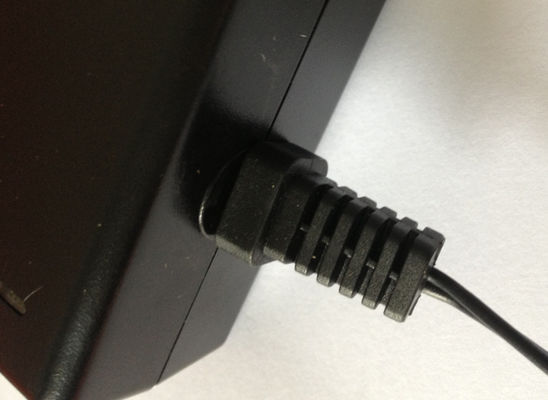

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection 1





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.





Factory Show:

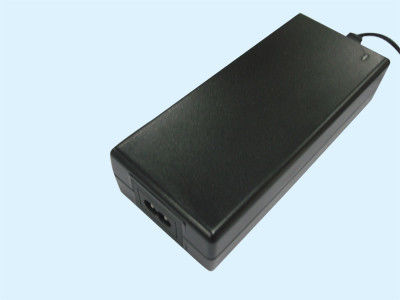

Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection 2
