Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter

Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter

  • Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter
  • Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter
  • Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter
Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter
Product Details:
Place of Origin: China
Brand Name: WT
Certification: UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS
Model Number: WT1201000
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiation
Packaging Details: PE bag+white box/PE bag without white box
Delivery Time: 15 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 8000 PCS/Day
Contact Now
Detailed Product Description
High Light:

portable power adapter

,

smart power adapter



12V 1A 12W DC Output Portable Wall Mount Power Adapter with AU Plug , 1.2M DC Cord



Quick Details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12V 1A
  • Power: 12W
  • Dimension (L x W x H): 74 x 40 x 30mm
  • Socket type: AU plug
  • Application: CD-ROMs , ADSL Modem
  • DC jack: 5.5*2.5*11mm/ 5.5*2.1*10mm
  • DC cord: 1.2/1.5/1.8M



Description:



1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant



Warranty:

1 year

Certification:

 UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

Usage:

CD-ROMs , ADSL Modem

Packaging:



a. PE bag+ white box  84pcs/carton

b. PE bag without white box  100pcs/carton

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT1201000

MOQ:

500 pcs

Delivery Time:

15 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day





Our Advantages:

  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave



Some Using Details:

  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow.

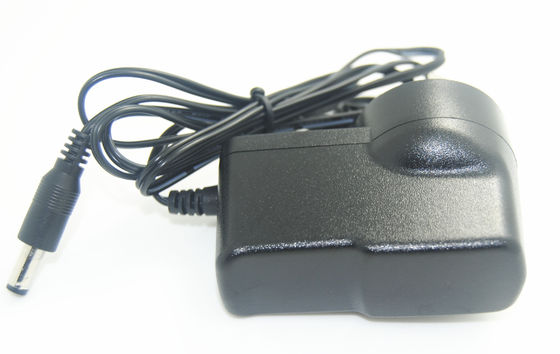

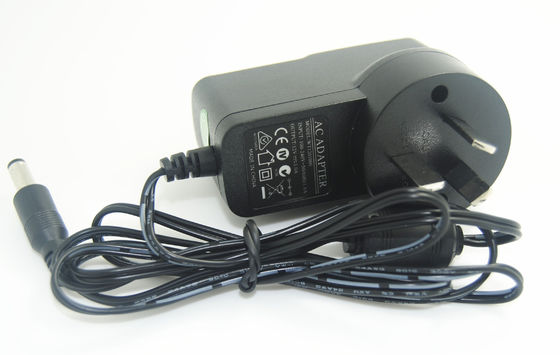

Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter 0

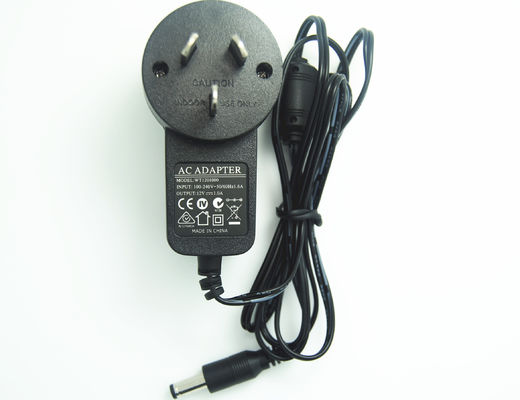

Portable AU Plug Wall Mounted Cell Phone International Travel Power Adapter 1
