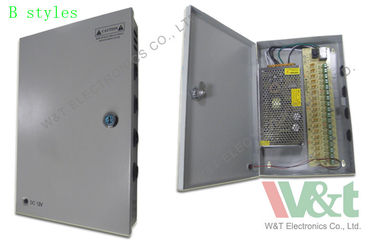

T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control

T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control

T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control
Product Details:
Contact Now
Detailed Product Description
High Light:

security camera power supply

,

Worldwide power supply

T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control





Features:


18 channels independent DC 12V output with protection
protections: SCP/OLP/OVP
cooling by free air convection
LED indicator
independent LED indicator with each output
100% full load burn-in test
Input with ON/OFF switch control
High effciency, long life and high reliability
2years warranty




Specification:


Input Voltage:100V~240V AC 50/60HZ
Input Voltage Range:90V ~ 264V AC or 90~132VAC / 180~264VAC (by switch)
Input Frequency Range:47~63Hz
Output Voltage: DC 12V
Output Current: 1660MA * 18
Output Channels: 18 channels
Total Output Current: 30A
Dimension: 250*210*90MM (L*W*H)




Environment:


Working Temp:-20 ~ +70℃
Working Humidity:20 ~ 90%RH non-condensing
Storage Temp, Humidity:-40 ~ +85℃,10 ~ 95%RH
Temp. Coefficient:±0.03%/℃(0 ~ 50℃




Safety & EMC:


Compliance to UL60950-1,EN60950-1
Compliance to EN55022(CISPR22) Class B
Compliance to EN61000-3-2,-3
CE FCC CB




Application:

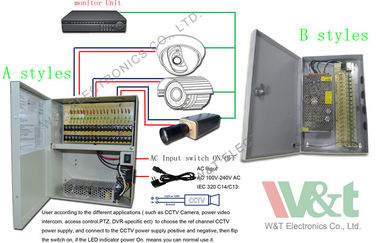

CCTV Camera , IP Camera , PTZ ,IR Illuminator , DVR,LED Dricer ,Access Control;
Building visual system power supply,Illuminator system etc.



T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control 0



T18 30A Wireless Camera CCTV Power Supply Waterproof with ON / OFF Switch Control 1
