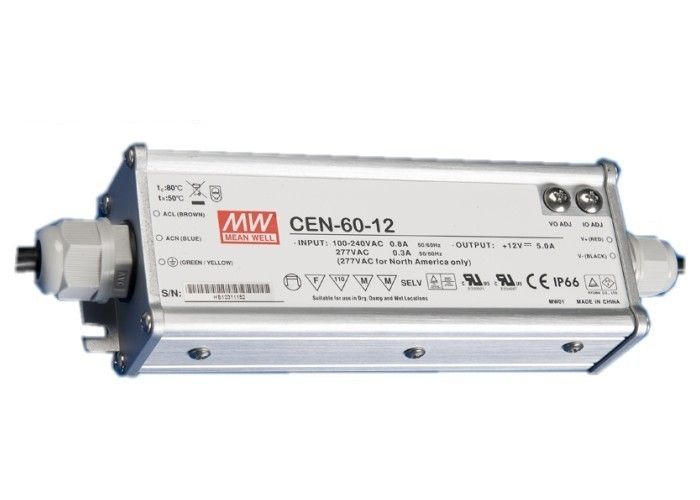

UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor

UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor

  • UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor
  • UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor
  • UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor
UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor
Product Details:
Place of Origin: China
Brand Name: Meanwell
Certification: CE,ROHS, TUV, UL
Model Number: CEN-60 Single Output LED Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
SAFETY STANDARDS: UL879, UL8750, CSA C22.2 No. 207-M89, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13 Approved TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
WORKING HUMIDITY: 20 ~ 95% RH Non-condensing VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, Period For 72min. Each Along X, Y, Z Axes
WORKING TEMP.: -30 ~ 70℃ WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH EMC EMISSION: Compliance To EN55015, EN61000-3-2 Class C (≧75% Load) ; EN61000-3-3
High Light:

LED Light Power Supply

,

LED Light Driver



UL Constant Current LED Driver Waterproof 60W CEN-60-36 Outdoor



CEN Series Features (60~100W Single Output with PFC):

1. Universal AC input (up to 295VAC) / Full range
2. Protections: Short circuit / Over current / Over voltage / Over temperature
3. Built-in active PFC function
4. IP66 design
5. Meet 4kV surge immunity level (IEC61000-4-5)

6. Class 2 power unit / Pass LPS
7. Cooling by free air convection
8. Suitable for dry, damp, and wet location
9. Suitable for LED lighting and moving sign applications
10. 3 years warranty



CEN-60 Series​ Features:
1. Universal AC input / Full range (up to 295VAC)
2. Protections: Short circuit / Over current / Over voltage / Over temperature
3. Output voltage and constant current level adjustable
4. Built-in active PFC function
5. IP66 design for indoor or outdoor installations
6. Class 2 power unit
7. Cooling by free air convection
8. 100% full load burn-in test
9. High reliability
10. Suitable for LED lighting and moving sign applications
11. Compliance to worldwide safety regulations for lighting
12. Suitable for dry / damp / wet locations

13. 3 years warranty



CEN Series Power Supplies:

CEN-60 Series, CEN-75 Series, CEN-100 Series


Quick Details of CEN-60 LED Power Supply:



CEN-60 Series
Model No. Output Tol. R&N Effi.
CEN-60-12 12V, 0~5.0A ±10% 2.0V 86%
CEN-60-15 15V, 0~4.0A ±10% 2.4V 87%
CEN-60-20 20V, 0~3.0A ±10% 1.8V 88%
CEN-60-24 24V, 0~2.5A ±10% 2.4V 89%
CEN-60-30 30V, 0~2.0A ±10% 3.0V 90%
CEN-60-36 36V, 0~1.7A ±10% 3.6V 90%
CEN-60-42 42V, 0~1.45A ±10% 4.0V 90%
CEN-60-48 48V, 0~1.3A ±10% 4.6V 91%
CEN-60-54 54V, 0~1.15A ±10% 5.0V 91%



Specifications of CEN-60:

Model No. CEN-60
AC input voltage range 90~295VAC; 127~417VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Current adjustment range 75%~100%
Over current protection 95%~110% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Over temp. protection Shut down o/p voltage, re-power on to recover
Setup time 500ms at full load and 230VAC, no hold up time
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -30~+70Celsius (refer to output derating curve)
Safety standards UL8750, UL879 (except for CEN-100), TUV EN61347-1, EN61347-2-13, PSE J61347-1,
J61347-2-13 approved
EMC standards EN55015, EN61000-3-2 class C , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Output UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 185x 62.5x 40.5



NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Please refer to "DRIVING METHODS OF LED MODULE".
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains.


CEN-60 Series Datasheet:



UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor 0

UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor 1

UL8750 Current LED Driver Waterproof 60W non-condensing Outdoor 2
