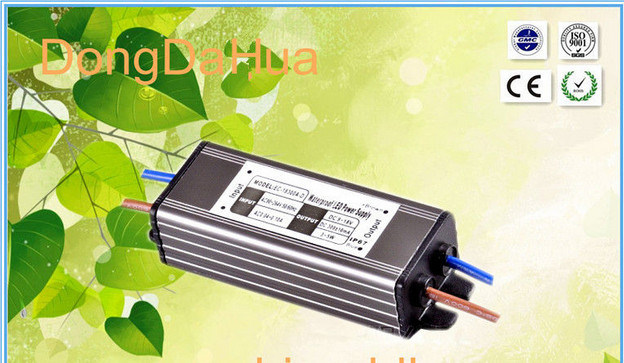

Waterproof Constant Current LED Driver

Product Details:

Place of Origin:	China
Brand Name:	DongDaHua
Certification:	CE RoHS
Model Number:	HF-005-18-09-0A32

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	/
Packaging Details:	as per your request
Delivery Time:	3-7 days on averange
Payment Terms:	TT;Paypal
Supply Ability:	3000pcs/Day

Contact Now

Detailed Product Description

Product Name:	Constant Current LED Driver	Input Frequency Range:	47~60Hz
Output Rated Power:	8.4W	Output Rated Current:	300mA
IP:	IP67	Certification:	CE RoHS
High Light:	constant current Source led driver , constant current led drivers

IP67 Design Constant Current LED Driver 3 - 7W 300mA

Features:

Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor

Specifications:

Model		HF-005-18-09-OA32
Output	Dc Voltage	10~28V±5%
	Rated Current	300mA
	Rated Power	8.4W
	Ripple&Noise(Max)	100mV
	Current Tolerance	±20mA
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	90~264VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.5/220VAC
	Efficiency(Typ)	72%
	Ac Current(Typ)	0.15A/235V
	Inrush Current(Typ)	Cold-start current 0.3A/235V
Protection	Short Circuit	Protection type:recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60℃(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80℃,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	Emc Test Standards	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load regulation.

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
