High Light: | external power supply,ac power adapters |
---|

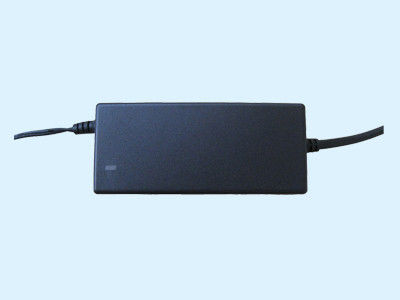

GPS Navigator Desktop Power Adapter 9V 5A , Ripple And Noise < 100mVp-p
Feature:
. Universal AC Input
. Safety Approved , High Reliability
. Compliance to REACH , Rohs
. Built Over Voltage Protection, Overload Protection, Short Circuit Protection
. Small Ripple And Noise
. 2 years warranty
. Widely Applied On Advertising Machine , Printer , GPS Navigator Etc. ,
Description:
Electronics Specification : | |
Input Voltage Range: | 90~264Vac |
AC Input Current: | 1.0A |
Frequency: | 50/60Hz |
Output Voltage: | 9.0Vdc |
Output Voltage Range : | 8.55Vdc to 9.45Vdc |
Maximum Output Current : | 5.0A |
Efficiency : | > 85% |
Ripple And Noise : | < 100mVp-p |
Line regulation: | ±1% |
Load regulation: | ±5% |
Over current protection: | Hiccup mode, Auto recovery |
Over voltage protection: | Power shutdown, Auto recover |
Environment : | |
Working Temp.: | 0~40℃ |
Working Humidity: | 20%~90% RH non-condensing |
Storage Temp. & Humidity: | -20℃~85℃, 10%~95% RH |
Reliability : | |
Hi-Pot Testing Voltage : | I/P to O/P : 3.0 (60Sec.) KVac |
Safety Standard : | EN60950 |
EMI Standard : | EN55022B |
Safety Approval : | |
Certificate | UL, CE, FCC, C-TICK,CB |
Mechanical Characteristics | |
Size: | (L)114*(W)50*(H)30.5mm |
AC connector | IEC8/IEC14 |
DC Cable: | 1.5M |
DC connector: | 5.5*2.1*12mm, other type connector avaible |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
