Product Details:

Contact Now
Detailed Product Description

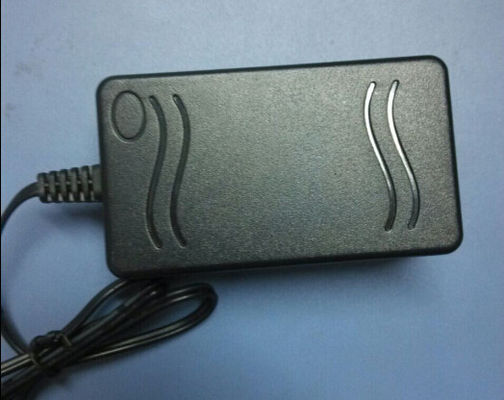

Security Monitoring Adapters Desktop Power Adapter 7V 2570mA



Feature:

. Universal Input
. Fully Enclosed By Plastic Case
. Class 2 Power Supply
. Protections : Over Voltage , Overload , Short Circuit
. Meet Energy Star Level V
. 2 Years Warranty


Description:


Electronics Specification :

Input Voltage Range:

90~264Vac

AC Input Current:

1.0A

Frequency:

50/60Hz

Output Voltage:

7.0Vdc

Output Voltage Range :

6.65Vdc to 7.35Vdc

Maximum Output Current :

2570mA

Efficiency :

> 83%

Line Regulation :

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)77 * (W)45 * (H)26mm

AC connector

IEC320 / C8

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible


Applications:

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.


Factory Show:
Security Monitoring Adapters Desktop Power Adapter 7V 2570mA EN60950
