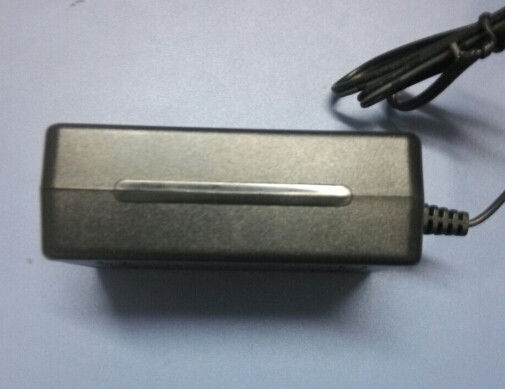

UL Certificate Desktop Power Adapter 5V 4.0A For Audio Video Products

Electronics Specification :

Input Voltage Range:

100~240Vac

AC Input Current:

1.5A

Frequency:

50/60Hz

Output Voltage:

5.0Vdc

Output Voltage Range :

4.75Vdc to 5.25Vdc

Maximum Output Current :

4.0A

Efficiency :

> 70%

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)77 * (W)45 * (H)26mm

AC connector

IEC320 / C8

DC Cable:

1.8M

DC connector:

5.5*2.1*10mm, Other Types Connector Avaible
