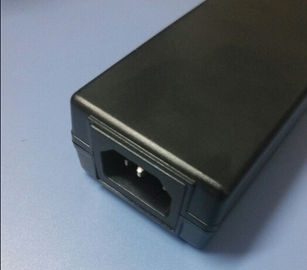

14V4.6A Desktop Power Adapter IEC320/C14 Input Connector For Audio System

Electronics Specification :

Input Voltage Range:

90~264Vac

AC Input Current:

1.0A

Frequency:

50/60Hz

Output Voltage:

14.0Vdc

Output Voltage Range :

13.3Vdc to 14.7Vdc

Maximum Output Current :

4.6A

Efficiency :

> 85%

Ripple And Noise :

< 30mVp-p

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, EMC

Mechanical Characteristics

Size:

(L)120 * (W)52 * (H)32mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible
