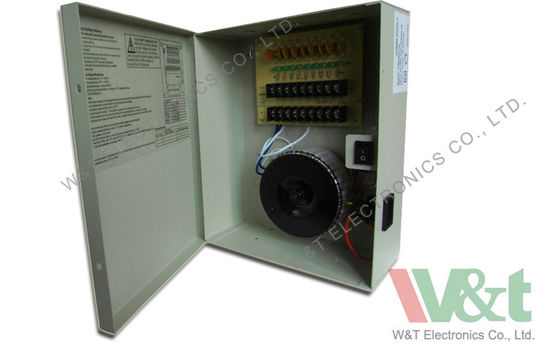

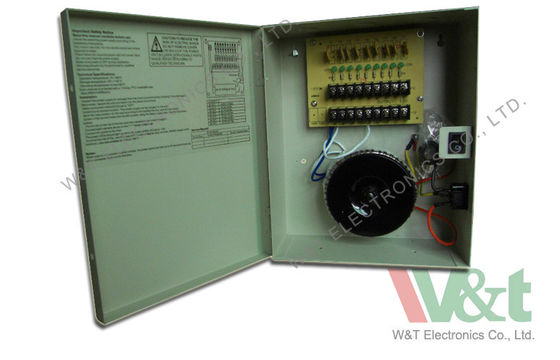

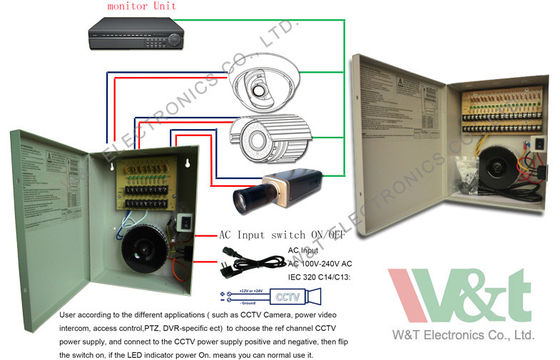

AC 24V 4 Amp 96W 8 Channel CCTV Power Supply For Cameras , Access Control

Model No.

W&T-TVL2404-T8 (8 Channel output)

Outputs channels

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Output

AC Voltage (V)

24V

24V

24V

24V

24V

24V

24V

24V

Rated Current (A)

0.5A

0.5A

0.5A

0.5A

0.5A

0.5A

0.5A

0.5A

LED indicator

LED

Ripple wave & noise(MV)

200mV

Voltage Accuracy(%)

±5%

Total output current

4.0A

Thermal Cutoffs Protection(TCO)

Each output has independent PTC fuse and LED indicator , when problem occurs, only affect the independent output ,other output still working .

Rise time

1800ms,23ms/230VAC        4000ms,30ms/115VAC at full load

Hold up time (TYP.)

80ms/230VAC    14ms/115VAC at full load

Input

Volrage range

115V / 230V AC;  (86V- 130V AC  OR  180V-240V AC)

Frequency range

47~63Hz

Efficency (Typ.)

>60%

Protection

Over load

110-180%rated output power ,protection type:hiccup mode,recovers automatcally after fault  condition removed

Over Current

When the over current occurs(Average output current 130-150%), the power supply will automatically switch to self-protection status, when condition removed,then switch back to normal .

Over voltage

0ver voltage set : 120-140% rated voltage

Short circuit

 When short condition occurs, independent PTC fuse will open the circuit,when condition removed , PTC fuse will automatically back to close .

Environment

Working Temp

﹣20~﹢60℃

Working humidty

20~90%RH, non-condensing

Storage temperature

﹣40~﹢85℃ ,10~95%RH

Withstand voltage

I/P~O/P:3KVAC    I/P~FG:1.5KVAC   O/P~FG:0.5KVAC

Isolation resistance

I/P~O/P ,  I/P~FG ,  O/P~FG:100M Ohms/500VDC/25℃/70%  RH

EMI EMISSION

Compliance to EN55022(CISPR22) Class B

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204, light industry level , criteria A

Others

MTBF

≧100K hrs.    MIL-HDBK-217F (25℃)

Dimension

A: 255*208*90mm (L*W*H)

Packing

0.60Kg:5PCS/3.0Kg   (530*300*240MM)
