12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera

12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera

12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera

Product Details:

Contact Now
Detailed Product Description

12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera





Quick Detail:



12V 25A CCTV power, 18 channels output, Independent LED indicator with each output. 100-240VAC or115V/230VAC for switching input.



Brand Name :  W&T





Competitive Advantage:



High efficiency power

LED indicator

Independent LED indicator with each output

Over load & short circuit protection

100% full load burn-in test

2 Years warranty





Application:



It’s suitable for an extremely wide range of applications, including:

• shelter camera  adapter

• Wireless  CCTV camera charger

• waterproof infrared camera adpater
• Wireless Burglary Alarm charger
• Digital camera
• Electronics Toy
• IP camera adapter
• GSM alarm system adapter
• intercom system adapter

• CCTV Camera , IP Camera , PTZ , IR Illuminator , DVR,LED Dricer , Access Control;
Building visual system power supply,Illuminator system etc.



Model No.

W&T-TVP1225-T18 (18 Channel output)



Outputs channels

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Output

DC Voltage (V)

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

12V

Rated Current (A)

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

1.38A

LED indicator

LED

Ripple wave

& noise(MV)

120mV

Voltage

Accuracy(%)

±5%

Total output current

25.0A

Thermal Cutoffs Protection(TCO)

Each output has independent PTC fuse and LED indicator , when problem occurs,

only affect the independent output ,other output still working .

Rise time

1800ms,23ms/230VAC        4000ms,30ms/115VAC at full load

Hold up time (TYP.)

80ms/230VAC    14ms/115VAC at full load

Input

Volrage range

115V / 230V AC For Switching;

Frequency range

47~63Hz

Efficency (Typ.)

>80%

Protection

Over load

110-180%rated output power ,protection type:hiccup mode,recovers automatcally after

fault  condition removed

Over Current

When the over current occurs(Average output current 130-150%), the power supply

will automatically switch to self-protection status, when condition removed,then switch back to normal .

Over voltage

0ver voltage set : 120-140% rated voltage

Short circuit

 When short condition occurs, independent PTC fuse will open the circuit,when

condition removed , PTC fuse will automatically back to close .

Environment

Working Temp

﹣20~﹢60℃

Working humidty

20~90%RH, non-condensing

Storage temperature

﹣40~﹢85℃ ,10~95%RH

Withstand voltage

I/P~O/P:3KVAC    I/P~FG:1.5KVAC   O/P~FG:0.5KVAC

Isolation resistance

I/P~O/P ,  I/P~FG ,  O/P~FG:100M Ohms/500VDC/25℃/70%  RH

EMI EMISSION

Compliance to EN55022(CISPR22) Class B

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204, light industry level , criteria A

Others

MTBF

≧100K hrs.    MIL-HDBK-217F (25℃)

Dimension

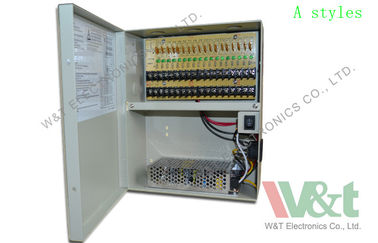

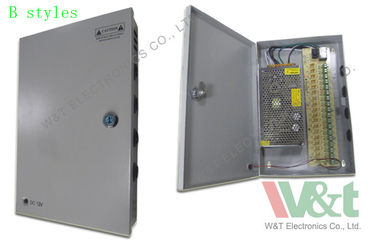

A: 255*208*90mm (L*W*H)    B: 315*205*52mm (L*W*H)

Packing

0.60Kg:5PCS/3.0Kg   (530*300*240MM)



Mechanical  spec



12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera12V 25A Full Range Regulated CCTV Power Supply For Outdoor Surveillance Camera
