House 9 Port PTC CCTV Power Supply Box For Security Cameras 115V / 230VAC

House 9 Port PTC CCTV Power Supply Box For Security Cameras 115V / 230VAC

House 9 Port PTC CCTV Power Supply Box For Security Cameras 115V / 230VAC

Product Details:

Contact Now
Detailed Product Description

House 9 Port PTC CCTV Power Supply Box For Security Cameras 115V / 230VAC


Quick Detail:

12V5A  CCTV power, 9 channels output, Independent LED indicator with each output. 100-240VAC or115V/230VAC for switching input.
Brand Name :  W&T


Competitive Advantage:

High efficiency power
LED indicator
Independent LED indicator with each output
Over load & short circuit protection
100% full load burn-in test
2 Years warranty


Application:

It’s suitable for an extremely wide range of applications, including:
• shelter camera  adapter

• Wireless  CCTV camera charger
• waterproof infrared camera adpater
• Wireless Burglary Alarm charger
• Digital camera
• Electronics Toy
• IP camera adapter
• GSM alarm system adapter
• intercom system adapter



Model No.

W&T-TVP1205-T9 (9 Channel output)





Outputs channels

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18



Output

DC Voltage (V)

12V

12V

12V

12V

12V

12V

12V

12V

12V





















Rated Current (A)

0.66A

0.66A

0.66A

0.66A

0.66A

0.66A

0.66A

0.66A

0.66A





















LED indicator

LED



Ripple wave & noise(MV)

120mV



Voltage Accuracy(%)

±5%



Total output current

5.0A



Thermal Cutoffs Protection(TCO)

Each output has independent PTC fuse and LED indicator , when problem occurs, only affect the independent output ,other output still working .




Rise time

1800ms,23ms/230VAC        4000ms,30ms/115VAC at full load



Hold up time (TYP.)

80ms/230VAC    14ms/115VAC at full load



Input

Volrage range

100V-240V AC;  (86V-265V AC)



Frequency range

47~63Hz



Efficency (Typ.)

>80%



Protection

Over load

110-180%rated output power ,protection type:hiccup mode,recovers automatcally after fault  condition removed



Over Current

When the over current occurs(Average output current 130-150%), the power supply will automatically switch to self-protection status, when condition removed,then switch back to normal .



Over voltage

0ver voltage set : 120-140% rated voltage



Short circuit

 When short condition occurs, independent PTC fuse will open the circuit,when condition removed , PTC fuse will automatically back to close .



Environment

Working Temp

﹣20~﹢60℃



Working humidty

20~90%RH, non-condensing



Storage temperature

﹣40~﹢85℃ ,10~95%RH



Withstand voltage

I/P~O/P:3KVAC    I/P~FG:1.5KVAC   O/P~FG:0.5KVAC



Isolation resistance

I/P~O/P ,  I/P~FG ,  O/P~FG:100M Ohms/500VDC/25℃/70%  RH



EMI EMISSION

Compliance to EN55022(CISPR22) Class B



EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204, light industry level , criteria A



Others

MTBF

≧100K hrs.    MIL-HDBK-217F (25℃)



Dimension

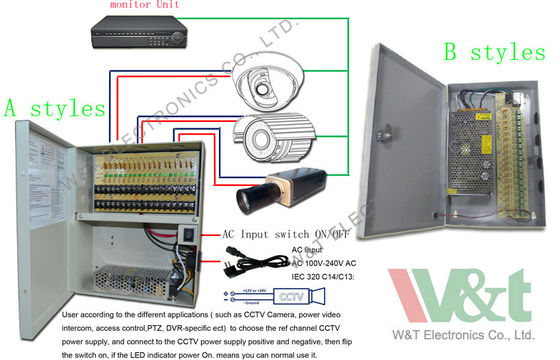

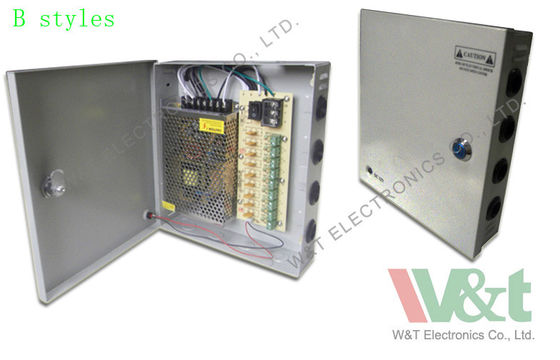

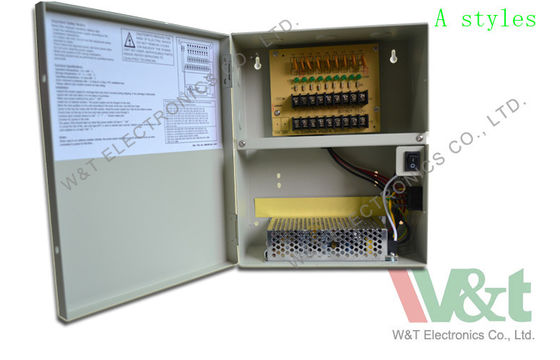

A: 255*208*90mm (L*W*H)    B: 235*205*52mm (L*W*H)



Packing

0.60Kg:5PCS/3.0Kg   (530*300*240MM)





Mechanical  spec
