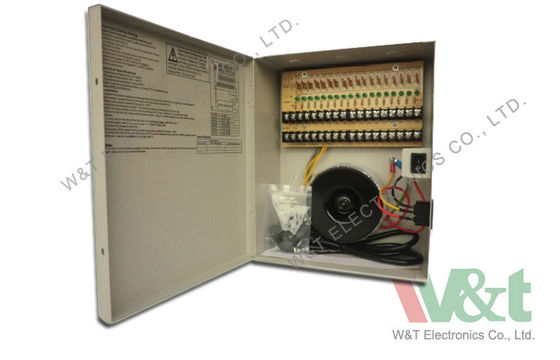

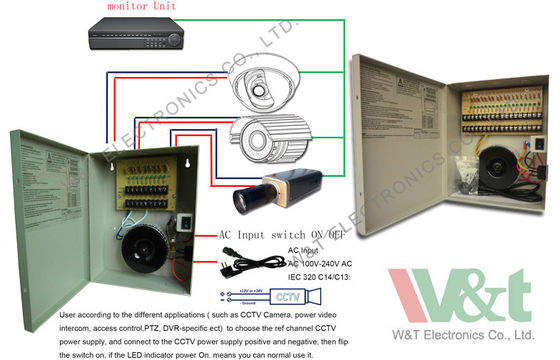

24VAC 20A Wireless CCTV Power Supply / Security Camera Power Supply Unit

Model No.

W&T-TVL2420-T18 (18 Channel output)

Outputs channels

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Output

AC Voltage (V)

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

24V

Rated Current (A)

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

1.11A

LED indicator

LED

Ripple wave

& noise(MV)

200mV

Voltage

Accuracy(%)

±5%

Total output current

20.0A

Thermal Cutoffs Protection(TCO)

Each output has independent PTC fuse and LED indicator , when problem occurs, only affect the independent output ,other output still working .

Rise time

1800ms,23ms/230VAC        4000ms,30ms/115VAC at full load

Hold up time (TYP.)

80ms/230VAC    14ms/115VAC at full load

Input

Volrage range

115V / 230V AC;  (86V- 130V AC  OR  180V-240V AC)

Frequency range

47~63Hz

Efficency (Typ.)

>60%

Protection

Over load

110-180%rated output power ,protection type:hiccup mode,recovers automatcally after fault  condition removed

Over Current

When the over current occurs(Average output current 130-150%), the power supply will automatically switch to self-protection status, when condition removed,then switch back to normal .

Over voltage

0ver voltage set : 120-140% rated voltage

Short circuit

 When short condition occurs, independent PTC fuse will open the circuit,when condition removed , PTC fuse will automatically back to close .

Environment

Working Temp

﹣20~﹢60℃

Working humidty

20~90%RH, non-condensing

Storage temperature

﹣40~﹢85℃ ,10~95%RH

Withstand voltage

I/P~O/P:3KVAC    I/P~FG:1.5KVAC   O/P~FG:0.5KVAC

Isolation resistance

I/P~O/P ,  I/P~FG ,  O/P~FG:100M Ohms/500VDC/25℃/70%  RH

EMI EMISSION

Compliance to EN55022(CISPR22) Class B

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204, light industry level , criteria A

Others

MTBF

≧100K hrs.    MIL-HDBK-217F (25℃)

Dimension

A: 255*208*90mm (L*W*H)

Packing

0.60Kg:5PCS/3.0Kg   (530*300*240MM)
