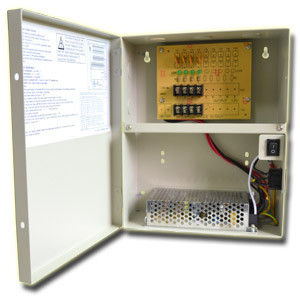

4Way 5A CCTV Security Power Supply 12V CE FCC For PTZ / DVR / LED Dricer

4Way 5A CCTV Security Power Supply 12V CE FCC For PTZ / DVR / LED Dricer

4Way 5A CCTV Security Power Supply 12V CE FCC For PTZ / DVR / LED Dricer
Product Details:
Contact Now
Detailed Product Description
High Light:

security camera power supply

,

CCTV camera power Supplies

4Way 5A CCTV Security Power Supply 12V CE FCC For PTZ / DVR / LED Dricer





Features:


4 channels independent dc 12 v output with protection
protections: SCP/OLP/OVP
cooling by free air convection
LED indicator
independent LED indicator with each output
100% full load burn-in test
Input with ON/OFF switch control
High effciency, long life and high reliability
2years warranty




Specification:


Input Voltage:100V~240V AC 50/60HZ
Input Voltage Range:90V ~ 264V AC
Input Frequency Range:47~63Hz
Output Voltage: DC 12V
Output Current: 1250MA * 4
Output Channels: 4 channels
Total Output Current: 5A
Dimension: 250*210*90MM (L*W*H)




Environment:


Working Temp:-20 ~ +70℃
Working Humidity:20 ~ 90%RH non-condensing
Storage Temp, Humidity:-40 ~ +85℃,10 ~ 95%RH
Temp. Coefficient:±0.03%/℃(0 ~ 50℃




Safety & EMC:


Compliance to UL60950-1,EN60950-1
Compliance to EN55022(CISPR22) Class B
Compliance to EN61000-3-2,-3
CE FCC CB




Application:


CCTV Camera , IP Camera , PTZ ,IR Illuminator , DVR,LED Dricer ,Access Control;
Building visual system power supply,Illuminator system etc.
