24V 3A Desktop Switching Power Supply / Universal LED Power Adapter
Features:
Function 1:adapter for printer machine
Function 2:charger for medical devices
Function 3:power supply for medical instruments
Specs:
Input: AC100-240V, 0.2A max.
Frequency: 50/60Hz
Output: DC24V, 3.0A
DC Cable: 18AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Color:Black
Description:

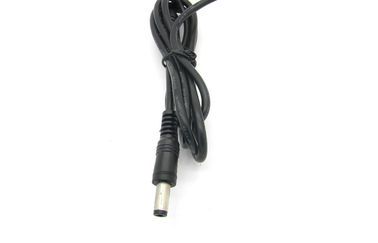

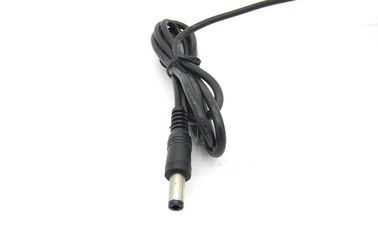

This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note: indoor use only.
Applications:
used for Digital Camera, CD-ROM HUB ADSL AP, Communication Terminals,Seeing and hearing product,LED Liquid-crystal display,Other Portable Device or Machines.
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Input AC Current
|
0.2A
|
|
Inrush Current
|
30A
|
|
Output
|
Rated Output Voltage
|
DC24V
|
|
Rated Output Current
|
3000mA
|
|
Rated Power
|
72W
|
|
Ripple and Noise
|
150mV p-p
|
|
Standby Power Consumption
|
0.5W
|
|
Turn-on
|
5s
|
|
Hold-up
|
20s
|
|
Over Voltage Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Short Circuit Protection
|
Yes, automatically recover after short circuit removed.
|
|
Reliability
|
Hi-pot
|
3000Vac
|
|
Insulation Resistance
|
Input to output at 500Vdc
|
|
Leakage Current
|
10mA
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 4 hours
|
|
Drop Test
|
6 direction, each one time from height 1.0M
|
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
Operating Humidity
|
10~80%
|
|
Storage Temperature
|
-20~65℃
|
|
Storage Humidity
|
0~90%
|
|
Safety Approvals
|
CE, RoHS, FCC, UL, SAA
|
|
Warranty
|
24 Months
|
Company Information:
Company Name: Shenzhen Zhongke Huadian Technology Co., Ltd.
Established Time: 2006
Product Range:Power Adapter,USB Charger,Power Bank Charger,Mobile Phone Charger Adapter
Area: 2,000 Square Meter
Employee: 150~160 People
Monthly Output: 1500,000 PCS.
Main Market: North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Middle East,Africa,Oceania
Annual Turnover: USD 9.0Million-10Million
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sale service
