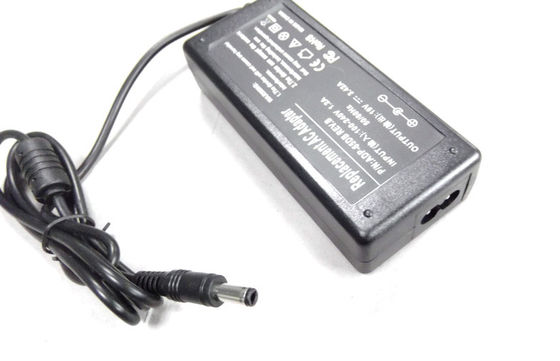

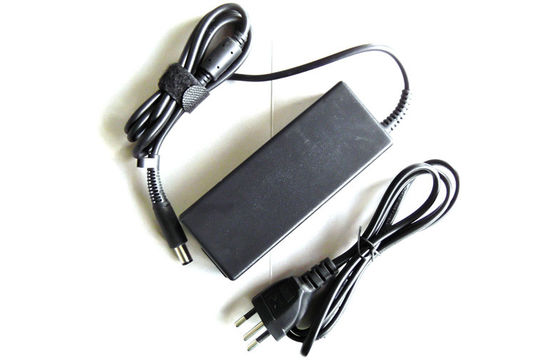

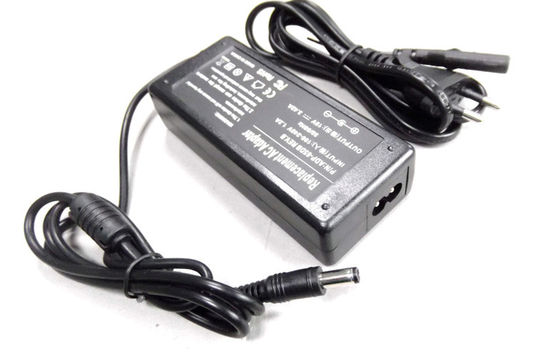

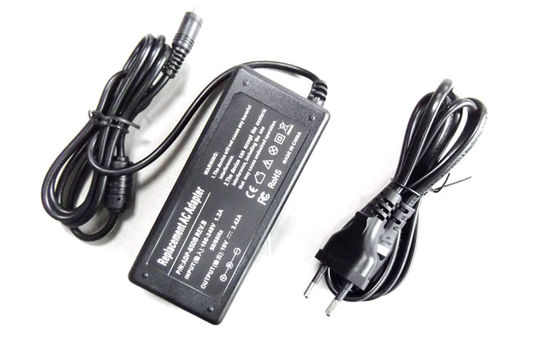

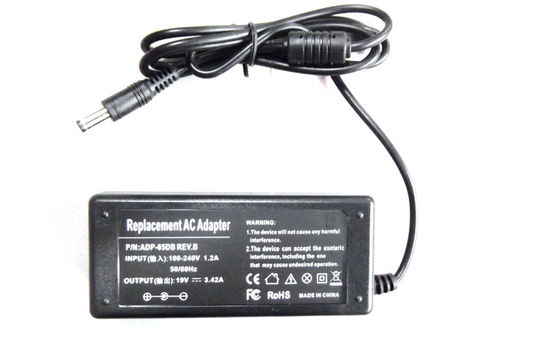

High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer

High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer

  • High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
  • High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
  • High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
  • High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
  • High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETR190342
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Price: Negotiable
Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 30000 Pcs monthly.
Contact Now
Detailed Product Description
AC Cable: 1.2M Application: Acer
Approval: CE, FCC, RoHS, UL, SAA Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15B
Feature: High Efficency Frequency: 50Hz / 60Hz
Input: AC100-240V Output: DC19V
Output Power: 65W Plug: EU, US, BR, SAA, UK
Product Name: Universal Laptop Power Adapter Protection: Short Circuit, Over Voltage, Over Current
MTBF: 50000 Hours Operating Temperature: 0~40℃
High Light:

power adapter for laptop

,

Laptop AC Power Adapter



High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer





Quick Detail:



Replacement laptop AC adapter 19.0V, 3.42A for Acer notebook, connector size: 5.5x2.1mm.





Specs:



Input: AC100-240V, 1.2A max.

Output: 19.0V 3.42A

Rated output power: 65W

AC Cable: EU, UK,US, SAA, BR for optional

DC Cable: 20AWG, Copper, length: 1.2M





Features:



- High efficiency, up to 80%;

- Protection: Short circuit protection, over voltage protection, over current protection.

- MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 1 years

Contents: 1 Adapter + 1 AC Cable





Description:



This is a replacement laptop adapter, with single output 19.0V, 3.42A, power 65Watt. The connector size is 5.5x2.1mm. This adapter has equivalent quality with the original adapters, but much cheaper than the later one. It is an idea choice when the original laptop adapter is broken.





Applications:



replacement laptop adapter to substitute original adapter when it stop work as normal.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.2A

Inrush Current

30A

Output

Rated Output Voltage

DC19.0V

Output Voltage

DC19.0V+/-0.5V

Rated Output Current

3.42A

Rated Power

65W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC

Warranty

1 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man;

- High performance-to-price ratio;

- Perfect after-sale service;

- OEM service.
