Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply

Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply

    • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply
    • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply
    • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply
    • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply
    • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply
  • Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: RAYTOP
    Certification: CE, RoHS, FCC
    Model Number: ETR190342

    Payment & Shipping Terms:

    Minimum Order Quantity: 3K
    Price: Negotiable
    Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 30000 Pcs monthly.
    Contact Now
    Detailed Product Description
    AC Cable: 1.2M Application: Acer
    Approval: CE|FCC|RoHS|UL|SAA Cable Material: Copper
    DC Cable: 1.2M EMI Standards: FCC Part 15 Class B
    Frequency: 50Hz / 60Hz Input: AC100-240V
    Output Power: 65W Plug: EU|US|BR|SAA|UK
    Product Name: Replacement Laptop Power Adapter Protection: Short Circuit|Over Voltage|Over Current
    Operating Temperature: 0~40℃

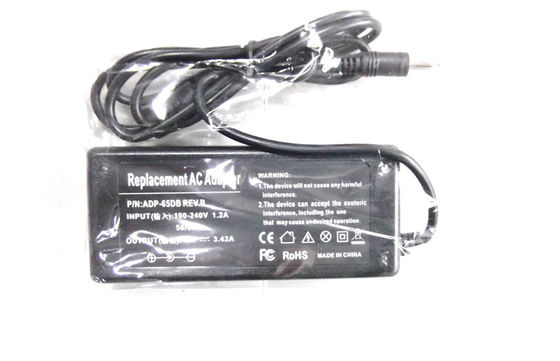

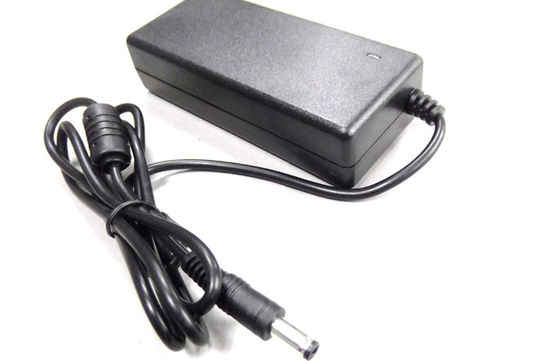

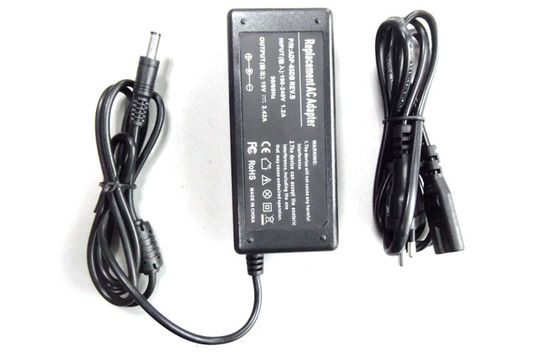

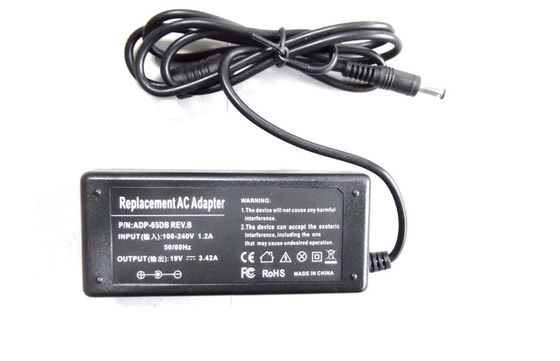

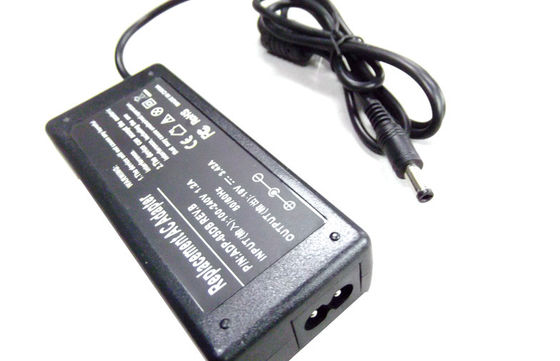

    Acer Replacement Laptop Power Adapter Over Voltage , 12v dc power supply



    Specs:



    Input: AC100-240V, 1.2A max.

    Output: 19.0V 3.42A

    Tip Size:5.5x1.7mm

    Rated output power: 65W

    AC Cable: EU, UK,US, SAA, BR for optional

    DC Cable: 20AWG, Copper, length: 1.2M



    Features:

    1. High efficiency, up to 83%;
    2. Protection: Short circuit protection, over voltage protection, over current protection.
    3. MTBF: 50,000 hours.
    4. Approval: CE, RoHS, FCC
    5. Warranty: 1 years
    6. Contents: 1 Adapter + 1 AC Cable

    Description:



    This is a replacement laptop adapter, with single output 19.0V, 3.42A, power 65Watt. The connector size is 5.5x1.7mm. This adapter has equivalent quality with the original adapters, but much cheaper than the later one. It is an idea choice when the original laptop adapter is broken.



    Applications:



    replacement laptop adapter to substitute original adapter when it stop work as normal.



    Specifications:







    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Input AC Current

    1.2A

    Inrush Current

    30A





    Output

    Rated Output Voltage

    DC19.0V

    Output Voltage

    DC19.0V+/-0.5V

    Rated Output Current

    3.42A

    Rated Power

    65W

    Ripple and Noise

    120mV p-p

    Standby Power Consumption

    0.5W

    Turn-on

    5s

    Hold-up

    20s

    Over Voltage Protection

    Yes

    Over Current Protection

    Yes

    Short Circuit Protection

    Yes, automatically recover after short circuit removed.





    Reliability

    Hi-pot

    3000Vac

    Insulation Resistance

    Input to output at 500Vdc

    Leakage Current

    5mA

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 12 hours

    Drop Test

    6 direction, each one time from height 1.0M





    Environmental

    Operating Temperature

    0~40℃

    Operating Humidity

    10~80%

    Storage Temperature

    -20~65℃

    Storage Humidity

    0~90%

    Safety Approvals

    CE, RoHS, FCC

    Warranty

    1 Years
