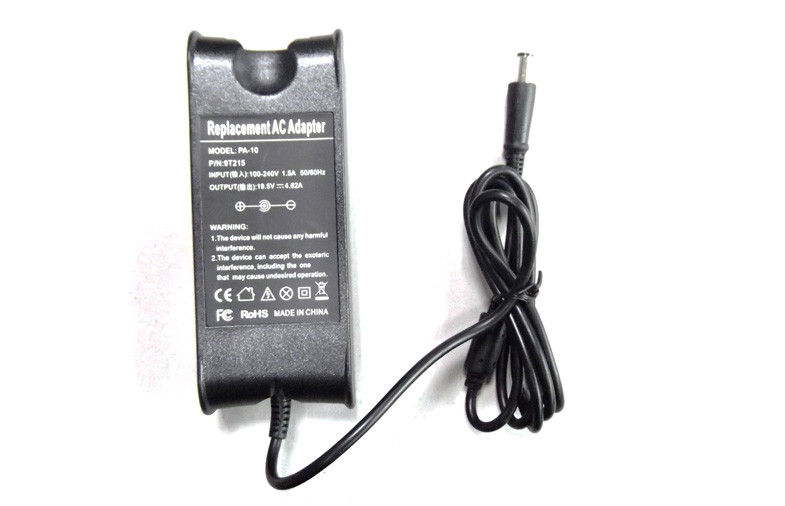

EU Plug Replacement Laptop Power Adapter
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETR195462
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Price: Negotiable
Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 30000 Pcs monthly.
Contact Now
Detailed Product Description
Application: Acer|DELL Laptop Adapter Approval: CE|RoHS|FCC|UL|SAA
EMI Standards: FCC Part 15 Class B Oem: Yes
Frequency: 50Hz / 60Hz Input: AC100-240V
Output: 19.5V Output Power: 90W
Plug: EU|US|UK|SAA|BR Function: For Notebook Power Charger
High Light:

power adapter for laptop

,

Laptop AC Power Adapter

90w Replacement Laptop Power Adapter for dell/accer single tip



Quick Detail:



Replacement laptop AC adapter 19.5V, 4.62A for Acer notebook, connector size: 7.4x5.0mm.





Specs:



Input: AC100-240V, 1.2A max.

Output: 19.5V 4.62A

Rated output power: 90W

AC Cable: EU, UK,US, SAA, BR for optional

DC Cable: 20AWG, Copper, length: 1.2M





Features:



-High efficiency, up to 85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 1 years

Contents: 1 Adapter + 1 AC Cable





Description:



This is a replacement laptop adapter, with single output 19.5V, 4.62A, power 90Watt. The connector size is 7.4X5.0mm. This adapter has equivalent quality with the original adapters, but much cheaper than the later one. It is an idea choice when the original laptop adapter is broken.





Applications:



replacement laptop adapter to substitute original adapter when it stop work as normal.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.2A

Inrush Current

30A

Output

Rated Output Voltage

DC19.5V

Output Voltage

DC19.5V+/-0.5V

Rated Output Current

4.62A

Rated Power

90W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC

Warranty

1 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man;

-High performance-to-price ratio;

-Perfect after-sale service;

-OEM service.
