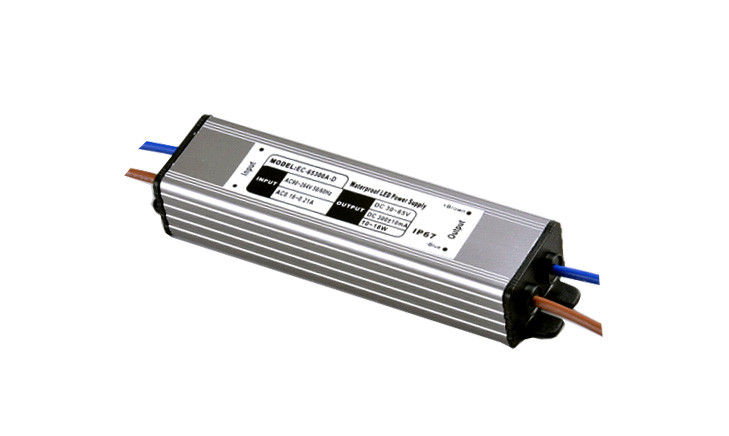

18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display

18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display

    • 18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display
    • 18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display
    • 18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display
    • 18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display
  • 18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display

    Product Details:

    Place of Origin: China
    Brand Name: DongDaHua
    Certification: CE RoHS
    Model Number: HF-018-65-30-0A30

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: /
    Packaging Details: as per your request
    Delivery Time: 3-7 days on averange
    Payment Terms: TT;Paypal
    Supply Ability: 3000pcs/Day
    Contact Now
    Detailed Product Description
    Product Name: Constant Current LED Driver Output Dc Voltage: 30~60V
    Output Rated Power: 18W Input Voltage Range: 90~264V AC
    Input Frequency Range: 47~60Hz Protections: Short Circuit/OLP/OVP

    12-18W 300mA Constant Current LED Driver Protect from Short Circuit


    Features:

    Universal AC input/Full range
    Protections: Short circuit/OLP/OVP
    Meet EMC standards
    100% full load burn-in test
    High efficiency,long life and high reliability
    IP67 design for indoor and outdoor

    18W 300mA Waterproof Constant Current LED Driver Universal AC For LCD Display

    Application:
    It’s suitable for an extremely wide range of applications, including:
    LED, CCTV camera;
    Communications and security products;
    LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.



    Specifications:


    ModelHF-018-65-30-0A30
    OutputDc Voltage30~60V±5%
    Rated Current300mA
    Rated Power18W
    Ripple&Noise(Max)180mV
    Current Tolerance±20mA
    Setup,Rise Time100ms/220VAC
    Hold Up Time(Typ.)80ms/220VAC
    InputVoltage Range90~264VAC
    Frequency Range47~60Hz
    Power Factor(Typ)PF>0.5/220VAC
    Efficiency(Typ)83%
    Ac Current(Typ) 0.25A/235V
    Inrush Current(Typ)Cold-start current 0.7A/235V
    ProtectionShort CircuitProtection type:recovers automatically after fault conditions is removed
    OverlaodOverload protection@145~160%above peak rating
    Over Temperatureprotection typer:shut down o/p voltage.re-power on to recover
    EnvironmentWorking Temp-30~ +60℃(Refer to output load derating curve)
    Working Humidity20~90%RH no-condensing (Waterproof)
    Storage Temp Humidity-40~ +80℃,10~90%RH
    Safety&EmcSafety StandardsCE Mark(LVD),IP67
    Withstand VoltageI/P-O/P:1.5KVAC   IP-GND:1.5KVAC
    Emc Test StandardsEN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
    EN 61347-1:2008 EN 61347-2-13:2006
    NOTE1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
    2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
    3.Tolerance:includes set up tolerance,line regulation and load regulation.
