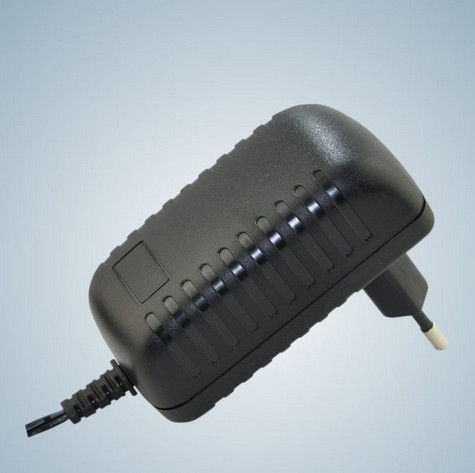

Black 15Watt Universal AC Power Adapter Wall Mounted , KSAS015 Series KTEC

Black 15Watt Universal AC Power Adapter Wall Mounted , KSAS015 Series KTEC

    • Black 15Watt Universal AC Power Adapter Wall Mounted , KSAS015 Series KTEC
  • Black 15Watt Universal AC Power Adapter Wall Mounted , KSAS015 Series KTEC

    Product Details:

    Place of Origin: China Mainland
    Certification: CE GS BS UL CUL SAA AU UK KO PSE
    Model Number: 15W KSAS015 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiable
    Packaging Details: PE bag + White box
    Delivery Time: 30 days
    Payment Terms: T/T
    Supply Ability: 1 Million / Month
    Contact Now
    Detailed Product Description
    High Light:

    Universal Power Adapters

    ,

    universal notebook power adapter

    Black 15Watt Universal AC Power Adapter Wall Mounted , KSAS015 Series KTEC











    Brand Name:
    Input: •Input Voltage: 90 to 264 VAC
    •Frequency : 47-50/60-63HZ
    •Input Current : 0.4A (Max) 100/240VAC
    •Inrush Current : 50A Max 100VAC at max Load
    60A Max 240VAC at max Load
    •Leakage Current: 0.25mA Max
    Output: •Over voltage protection
    •Over current protection
    at 110-200% of lo and Auto-recovery
    •Electronic short circuit protection
    •Operating temperature 0~40℃ Free convection
    •Operating humidity 10-80% RH Non Condensing
    •Sea level Non-operating temperature -20~ 80℃
    Safety standards: •Information technology equipment
    •IEC/EN 60950-1, UL 60950-1, CSA C22.2
    No. 60950-1-03, GB4943
    Certificates and approvals: •CB , GS , CE ,TUV , UL , CCC , FCC,PSE
    EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
    •Harmonic Test: EN 61000-3-2
    •Flicker Test: EN 61000-3-3
    EMS immunity: •ESD Test:EN 61000-4-2
    •RS Test:EN 61000-4-3
    •EFT Test:EN 61000-4-4
    •Surge Test:EN 61000-4-5
    •CS Test:EN 61000-4-6
    •DIP Test:EN 61000-4-11
    Key Applications: Key Features of KSAS015 series
    •Light, extra slim, sleek, compact design
    •Green power, full complies with CEC level V, MEPS IV EUP2011
    •High power density
    •Extra safe design, have got their respective safety approvals
    •Completed protect function

    Key Applications of KSAS015 series
    It’s suitable for an extremely wide range of applications, including:
    •Mobile Devices
    •Pos
    •Audio & Video product
    •Hard disk drive
    •Set-top-box
    •Household appliance
    Payment Details: •Payment Terms: T/T,negotiable for OEMs
    Main Export Markets: • Eastern Europe
    • North America
    • Mid East/Africa
    • Central/South America
    • Asia
    • Western Europe
    • Australasia

    15W KSAS015 Series Ktec Switching Power Adapters With Wide range for General I.T.E Use, Set-top-box

    15W KSAS015 Series Ktec Switching Power Adapters With Wide range for General I.T.E Use, Set-top-box

    15W KSAS015 Series Ktec Switching Power Adapters With Wide range for General I.T.E Use, Set-top-box
