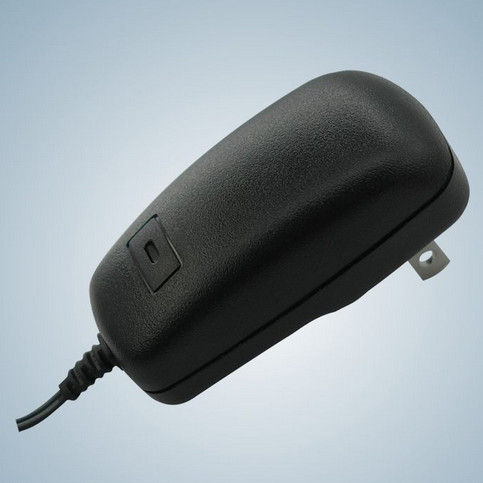

15W Light Slim Universal AC Power Adapter With Wide Range For General I.T.E

15W Light Slim Universal AC Power Adapter With Wide Range For General I.T.E

15W Light Slim Universal AC Power Adapter With Wide Range For General I.T.E

Product Details:

Place of Origin: China Mainland
Certification: CE GS BS UL CUL SAA AU UK KO PSE
Model Number: NS15W KSLFD Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1 Million / Month
Contact Now
Detailed Product Description

15W Light Slim Universal AC Power Adapter With Wide Range For General I.T.E









Brand Name:
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63HZ
•Input Current : 0.4A (Max) 100/240VAC
•Inrush Current : 30A Max 120VAC at max Load
60A Max 240VAC at max Load
•Leakage Current: 0.25mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03,GB4943,EN60335
Certificates and approvals: •CB , GS , CE , TUV, UL , CCC , FCC,C-TICK
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-
•Flicker Test:EN 61000-3-3
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key Features of KSLFD series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level V, MEPS IV EUP2011
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAS015 series
It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Printer
•Pos
•Audio & Video product
•Set-top-box
•Hard disk drive
•Household appliance
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
