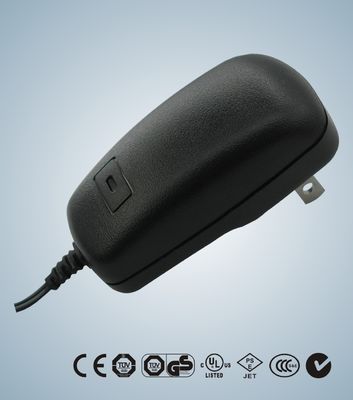

15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply

15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply

    • 15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply
  • 15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Certification: US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
    Model Number: KSLFD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiable
    Packaging Details: PE bag+ white box
    Payment Terms: T/T
    Supply Ability: 1M/Month
    FOB: Shenzhen Hongkong
    Contact Now
    Detailed Product Description
    High Light:

    switching power supply adapter

    ,

    switching mode power adapter


    15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply


    Key Features of KSLFD series

    ●Light, extra slim, sleek, compact design

    ●Green power, full complies with CEC level V, MEPS IV EUP2011

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function



    Key Applications of KSAS015 series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Printer

    ●Pos

    ●Audio & Video product

    ●Set-top-box

    ●Hard disk drive

    ●Household appliance

    Input

    ●Input Voltage:     90 to 264 VAC

    ●Frequency :        47-50/60-63hz

    ●Input current :    0.4A(Max) 120 /240VAC

    ●Inrush current : 30AMax 120VAC at max Load

                                   60AMax 240VAC at max Load

    ●Leakage current:0.25 mA Max

    Output

    ●Over voltage protection

    ●Over current protection

      at 110-200% of lo and Auto-recovery

    ●Electronic short circuit protection

    ●Operatingtemperature 0~40℃Free convection

    ●Operating humidity 10-90% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1, UL 60950-1, CSA C22.2

       No. 60950-1-03, GB4943, EN60335

    Certificates and approvals

    ●CB , GS , CE , TUV, UL , CCC , FCC, C-TICK

    EMI Emission

    ●Radiation Test&Conduction Test:EN 55022/FCC Part 15

    ●Harmonic Test:EN 61000-3-2

    ●Flicker       Test:EN 61000-3-3

    EMS immunity

    ●ESD   Test:EN 61000-4-2



    ●RS     Test:EN 61000-4-3

    ●EFT    Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS      Test:EN 61000-4-6

    ●DIP     Test:EN 61000-4-11

    Mechanical SPEC

    Dimension L*W*H (mm) : 82.0 * 43.0 * 32.5

    15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply 0

    Product tables for NS15W

    15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply 1

    Packing & shipping

    15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply 2

    Down Load
    15W 130v, 150v, 250V Portable Universal AC Power Adapter / AC DC Switching Power Supply 3
