Place of Origin: | Guangdong, China |
Certification: | CE.GS,CB,UL,FCC,C-TICK,TUV,PSE,CCC |
Model Number: | 36W KSAP036 |
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | Negotiable |
Packaging Details: | PE bag + White box |
Delivery Time: | 35days |
Payment Terms: | T/T |
Supply Ability: | 1Million/Month |
High Light: | switching mode power adapter,switching adaptor power supply |
---|

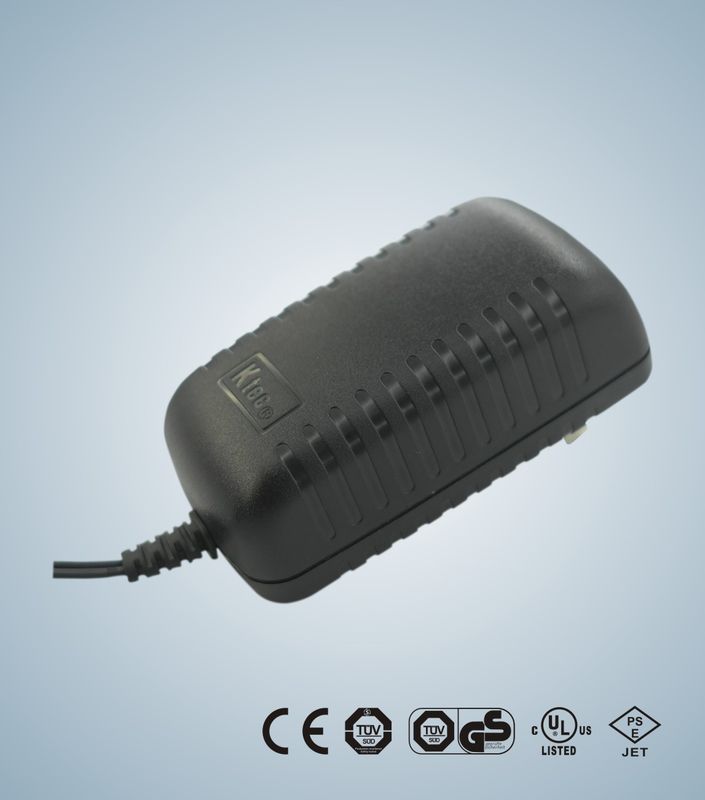

36W KSAP036 Switching Power Adapters with 12VDC 3A CE.GS,CB,UL,FCC,C-TICK,TUV,PSE,CCC Safety Approval UL60950 approval
Brand Name: | • |
Input: |
•Input Voltage : 90 to 264 VAC •Frequency : 47-50/60-63hz •Input current : 0.8A (Max) 120 /240VAC •Inrush current : 50A Max. 240VAC •Leakage current : 0.25 mA Max |
Output: |
•Over voltage protection •Over current protection at 110-200% of lo and Auto-recovery •Electronic short circuit protection •Ripple&noise 20 MHZ band width:200mV •Efficiency 84.26% Measured at 25℃ •Operating temperature 0~40℃ Free convection •Sea level Non-operating temperature -20~ 80℃ •Operating humidity 10-90% RH Non Condensing •No load power less than 0.3w |
Safety standards: |
•Information technology equipment •GB4943-2001 ,GB9254-1998 ,GB17625.1-2003 UL60950-1,1stEdition,AS/NIZS60950-1:2003,IEC/EN60950 EN60950-1/A11:2004 |
Certificates and approvals: | •CE.GS,CB,UL,FCC,C-TICK,TUV,PSE,CCC |
EMI Emission: | •Radiation Test&Conduction Test:EN 55022 |
EMS immunity: |
•ESD Test:EN 61000-4-2 •RS Test:EN 61000-4-3 •EFT Test:EN 61000-4-4 •Surge Test:EN 61000-4-5 •CS Test:EN 61000-4-6 •DIP Test:EN 61000-4-11 |
Key Applications: |
Key Features of KSAP036 Products highlights High Power Density Peak load 4.8A for normal input MTBF 50K hours @25℃( MIL-HDBK-217F) ESD:air discharging ±15KV,contact discharging ±8KV Operating Temp Range(-5℃ to 40℃) Key Applications of KSAP036 It's suitable for an extremely wide Range of applications,including: General power supply Output required by mobile hard disk, multimedia player and other electronic product Hard disk drive Audio&Video product |
Payment Details: | •Payment Terms: T/T,negotiable for OEMs |
Main Export Markets: |
• Eastern Europe • North America • Mid East/Africa • Central/South America • Asia • Western Europe • Australasia |
