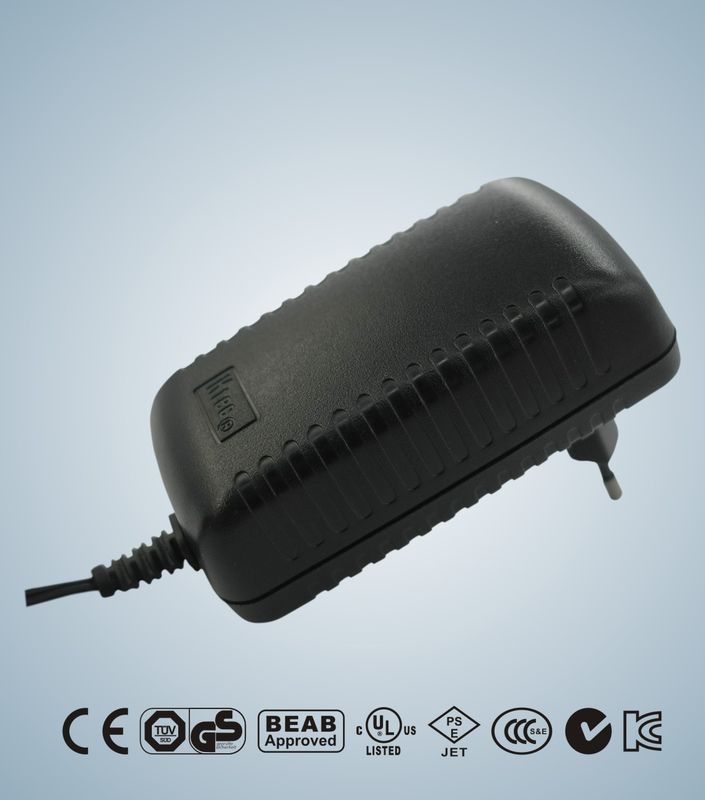

50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box

50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box

  • 50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box
50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box
Product Details:
Place of Origin: China Mainland
Certification: CB , GS , CE , BEAB, UL , CCC ,PSE, FCC,C-TICK,KC
Model Number: 50W KSAH Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

switching power supply adapter

,

switching adaptor power supply



50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box,printer UL60950 Approval



Brand Name:
Input: •Input Voltage:   90 to 264 VAC
•Frequency :      47-50/60-63HZ
•Input current :  0.8A (Max) 120 /240VAC
•Inrush current : 60A Max. 120VAC at max Load
                             100A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
 at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~35℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
 No. 60950-1-03,GB4943,K60950
Certificates and approvals: •CB , GS , CE , BEAB, UL , CCC ,PSE, FCC,C-TICK,KC
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker  Test:EN 61000-3-3
EMS immunity: •ESD    Test:EN 61000-4-2
•RS     Test:EN 61000-4-3
•EFT    Test:EN 61000-4-4
•Surge  Test:EN 61000-4-5
•CS     Test:EN 61000-4-6
•DIP    Test:EN 61000-4-11
Key Applications: Key Features of KSAH series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level V, MEPS V EUP2011
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAH series
•It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Laptop
•Printer
•Pos
•Hard disk drive
•Set-top-box
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia

50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box 0

50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box 1

50W KSAH Series Light Switching Power Adapters with 5-24VDC 0.05-5.9A for Printer,Hard disk drive,Set-top-box 2
