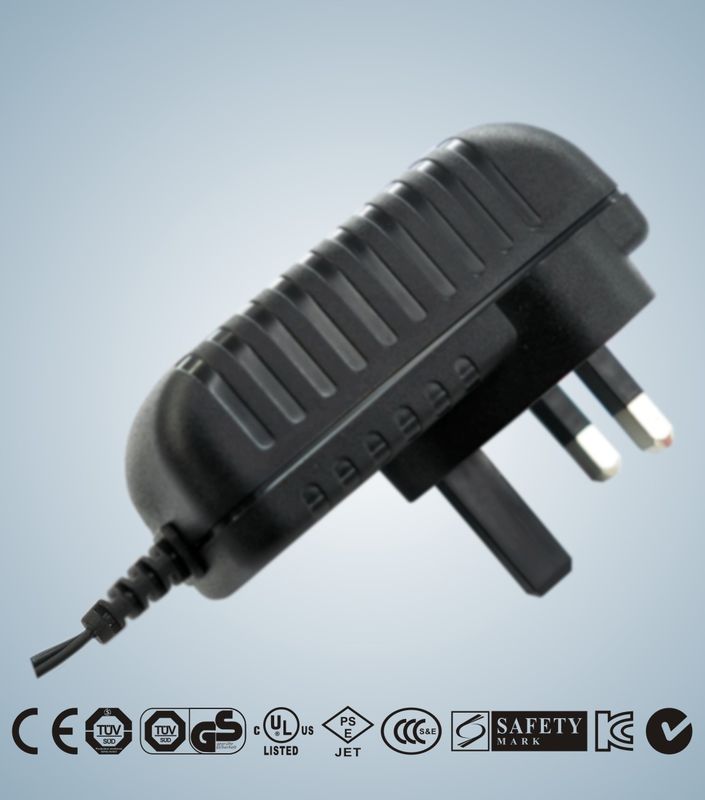

24W KSAS024 Series Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box

24W KSAS024 Series Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box

  • 24W KSAS024 Series  Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box
24W KSAS024 Series  Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box
Product Details:
Place of Origin: China Mainland
Certification: CB , GS , CE , UL,FCC,3C,PSE,PSB,TUV,C-TICK
Model Number: 24W KSAS024 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

switching power supply adapter

,

switching mode power adapter

24W KSAS024 Series Ktec Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box



Brand Name: •ktec
Input: •Input Voltage:   90 to 264 VAC
•Frequency :      47-50/60-63HZ
•Input current :  0.6A (Max) 120 /240VAC
•Inrush current : 60A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1
•IEC/EN 60065
•UL 60950-1, CSA C22.2
•No. 60950-1-03,GB4943,GB8898
Certificates and approvals: •CB , GS , CE , UL,FCC,3C,PSE,PSB,TUV,C-TICK
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker  Test:EN 61000-3-3
EMS immunity: •ESD    Test:EN 61000-4-2
•RS     Test:EN 61000-4-3
•EFT    Test:EN 61000-4-4
•Surge  Test:EN 61000-4-5
•CS     Test:EN 61000-4-6
•DIP    Test:EN 61000-4-11
Key Applications: Key Features of KSAS024 series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level V, MEPS V EUP2011
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAS024 series
It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Pos
•Hard disk drive
•Set-top-box
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia
