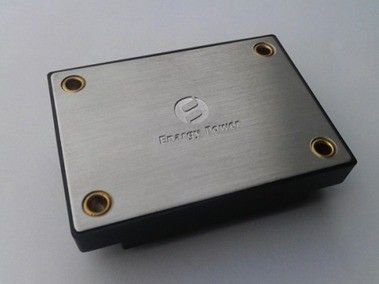

Wide input range 9-18 V DC Industrial Power Supply converter module 50W XX50-12S24-PEC

Wide input range 9-18 V DC Industrial Power Supply converter module 50W XX50-12S24-PEC

  • Wide input range 9-18 V DC Industrial Power Supply converter module 50W  XX50-12S24-PEC
Wide input range 9-18 V DC Industrial Power Supply converter module 50W  XX50-12S24-PEC
Product Details:
Place of Origin: China
Brand Name: Enargy
Model Number: XX50-12S24-PEC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Contact Now
Detailed Product Description
High Light:

industrial dc dc converter

,

isolated power supply

Industrial Power Supply 50W Output  24V/2.08A  XX50-12S24-PEC



Key Features

Output power: 50W

Wide input range: 9-18VDC

High conversion efficiency: Up to 87%

Line regulation to ±0.02%

Load regulation to ±0.02%

Fixed operating frequency

Isolation Voltage :1,500V

Enable (On/Off) Control

Input under-voltage lock-out

Output voltage trim:±8% Vout



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate.

Absolute maximum ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





22

Vdc

Continuous, non-operating





20

Vdc

Continuous, operating





22

Vdc

Operating transient protection,<100mS

Isolation voltage





2000

Vdc

Input to output

Operating Temperature

-40



100

Baseplate temperature

Storage Temperature

-55



115





Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

input voltage range

9

12

18

Vdc



Start voltage range

10

12

18

Vdc



Under-Voltage Lockout



8.5

8.9

Vdc

Turn - On threshold,half load

7.5

8.0



Vdc

Turn - Off threshold,half load

Maximum Input Current





7

A

Full load, Min. input

Efficiency



87



%

Nominal input; full load

Recommend External Input Capacitance



100



uF

Typical ESR 0.1-0.2Ω



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

23.76

124.00

24.24

Vdc

Nominal input; half load

Output Voltage Range

23.52

24.00

24.48

Vdc



Output Current Range

0.1



2.08

A



Line Regulation



±0.02

±1

%

Low line to high line; full load

Load Regulation



±0.02

±1

%

No load to full load; nominal input

Temperature Regulation





±0.02

% / °C

Over operating temperature range

Current limit

2.3





A

Output voltage 90% of nominal

Short circuit current





5

A



Ripple (RMS)





50

mV

Nominal input; full load; 20 MHz bandwidth

Noise(Peak-to-Peak)





240

mV

Maximum Output Cap.





1800

μF

Full load



Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change in Output Current

(di/dt= 0.1A/us)





960

mV

50% to 75% to 50% Iout max

Change in Output Current

(di/dt= 2.5A/us)





960

mV

50% to 75% to 50% Iout max

Settling Time





300

uS

To within 1% Vout nom.

Turn-on delay Time





50

mS

Full load; Vin to Vout=90% nom

Output voltage overshoot





5

%





Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

230

KHz



Output Voltage Trim





10

%

Trim Up, Trim Pin to (+) Vout.





8

%

Trim Down, Trim Pin to Com,

Enable Source Current





1

mA



Enable (On - Off Control)  Positive Logic

1



15

Vdc

On–Control, Logic high or floating

-0.5



0.3

Vdc

Off–Control, Logic low

Over-Power Protection

110





%



Short – Circuit Protection





65

Type: Hiccup Mode,  Auto Recovery, Short–Circuit Resistance



Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1,500





Vdc

Input to Output,1mA

1500





Vdc

Input to baseplate,1mA

500





Vdc

Output to baseplate,1mA

Isolation Resistance

100





At 500VDC to test it when atmospheric pressure and R.H. is 90%

Isolation Capacitance



1000



pF





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



+100

Extended, baseplate temperature

Storage Temperature

-55



+115

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.

Relative Humidity, Non - Condensing



Mechanical Outline

Wide input range 9-18 V DC Industrial Power Supply converter module 50W  XX50-12S24-PEC 0



Notes:

1. All pins are 0.040” (1.02mm) dia.

2. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm)

                       x.xxx ±0.010 in. (x.xx ±0.25mm)



Pin Designations

Pin No.

Name

Function

1

Enable

TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.

2

Vin(-)

Negative input voltage

3

Vin(+)

Positive input voltage

4

Vout(+)

Positive output voltage

5

Com

Negative output voltage

6

Trim

Output voltage trim. Leave TRIM pin open for nominal output voltage.
