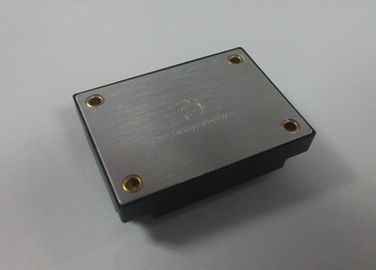

60W Industrial Power Supply 24v to 24v dc dc converter 2.5A XX60-24S24-PEC

60W Industrial Power Supply 24v to 24v dc dc converter 2.5A XX60-24S24-PEC

  • 60W Industrial Power Supply  24v to 24v dc dc converter 2.5A  XX60-24S24-PEC
60W Industrial Power Supply  24v to 24v dc dc converter 2.5A  XX60-24S24-PEC
Product Details:
Place of Origin: China
Brand Name: Enargy
Model Number: XX60-24S24-PEC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Contact Now
Detailed Product Description
High Light:

industrial power supplies

,

isolated power supply

Industrial Power Supply 60W Output  24V/2.5A  XX60-24S24-PEC





Key Features

Output power: 60W

Input range: 18-36VDC

High conversion efficiency: Up to 92%

Line regulation to ±1%

Load regulation to ±1%

Fixed operating frequency

Isolation Voltage :1500V

Enable (On/Off) Control

Output over-load protection

Hiccup mode short circuit protection

Input under-voltage lock-out

Output voltage trim: -8~+10% Vout



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate.

Absolute maximum ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





40

Vdc

Continuous, non-operating





38

Vdc

Continuous, operating





40

Vdc

Operating transient protection,<100mS

Isolation voltage





2000

Vdc

Input to output

Operating Temperature

-40



100



Storage Temperature

-65



125



Enable to –Vin Voltage

-0.5



15

Vdc





Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input voltage range

18

24

36

Vdc

Continuous

Under-Voltage Lockout



17.5

17.9

Vdc

Turn - On threshold

15.0

16.5



Vdc

Turn - Off threshold

Maximum Input Current





4.1

A

Full load, Min. input

Efficiency

90





%

Rated input voltage, rated load

Recommend External Input Capacitance



100



uF

Typical ESR 0.1-0.2W



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

23.76



24.24

Vdc

Nominal input; Half load;25℃

Output Voltage Range

23.52



24.48

Vdc



Output Current Range

0



2.5

A

Subject to thermal derating

Line Regulation



±0.02

±1

%

Low line to high line; full load

Load Regulation



±0.02

±1

%

No load to full load; nominal input

Current limit

2.75



4.50

A

Output voltage 90% of nominal

Ripple (RMS)





30

mV

Nominal input; full load; 20 MHz bandwidth

Noise(Peak-to-Peak)





240

mV

Maximum Output Cap.





1800

μF

Nominal input; full load

Output Voltage Trim





±8

%

Nominal input; full load; 25°C



Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change in Output Current

(di/dt= 0.1A/us)





480

mV

50% to 75% to 50% Iout max

Change in Output Current

(di/dt= 2.5A/us)





480

mV

50% to 75% to 50% Iout max

Settling Time





300

uS

To within 1% Vout nom.

Output voltage overshoot





5

%





Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

230

KHz

Regulation stage and Isolation stage

Trim(Pin6)

See part 6.2 Voltage Trim(Pin6)

Output Voltage Trim





8

%

Trim Up, Trim Pin to (-) Vout.





8

%

Trim Down, Trim Pin to (+) Vout.

Enable(ON/OFF)Control(Pin1)

See part 6.1

Enable Voltage

Enable Source Current





15

Vdc

Enable pin floating





1

mA



Enable (On - Off Control)  Positive Logic

1.0



15

Vdc

On–Control, Logic high or floating

-0.5



0.3

Vdc

Off–Control, Logic low

Short – Circuit Protection





10

Type: Hiccup Mode,  Auto Recovery, Short–Circuit Resistance



Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

Input to Base

500





Vdc

Output to Base

Isolation Resistance

100





At 500VDC to test it when atmospheric pressure and R.H. is 90%

Isolation Capacitance



1000



pF





General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



2.4(68)



Oz (g)

Encapsulated

MTBF ( calculated )

250





KHrs

TR-NWT-000332; 80% load,300LFM, 40℃ Ta



Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-40



+100

Extended, base PCB temperature

Storage Temperature

-55



+115

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.

Relative Humidity, Non - Condensing



Standards Compliance

Parameter

Notes

UL/cUL60950



EN60950



GB4943



Needle Flame Test (IEC 695-2-2)

test on entire assembly; board & plastic components UL94V-0 compliant

IEC 61000-4-2





Qualification Specification

Parameter

Notes

Vibration

10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis

Mechanical Shock

100g min, 2 drops in x and y axis, 1 drop in z axis

Cold(in operation)

IEC60068-2-1  Ad

Damp heat

IEC60068-2-67  Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solderability

IEC60068-2-20



Typical Application and Design Consideration

Typical application circuit

60W Industrial Power Supply  24v to 24v dc dc converter 2.5A  XX60-24S24-PEC 0

Figure 1: Typical application circuit (negative logic unit, permanently enabled).



designator

Value

Spec.

C1~C5

1uF

SMD1210-100V-X7R

C6

100nF

SMD1210-100V-X7R

C8~C11

100nF

SMD2220-1000V-X7R

L1,L2

2.4uH

ACM1211-701-2PL-TL01

C7

470uF

Electrolytic capacitor(100V)

C12

220uF

Electrolytic capacitor(63V)





Mechanical Outline

60W Industrial Power Supply  24v to 24v dc dc converter 2.5A  XX60-24S24-PEC 1



Notes:

1. All other pins are 0.040” (1.02mm) dia.

2. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm)

                        x.xxx ±0.010 in. (x.xx ±0.25mm)



Pin Designations

Pin No.

Name

Function

1

Enable

TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.

2

Vin(-)

Negative input voltage

3

Vin(+)

Positive input voltage

4

Vout(+)

Positive output voltage

5

Vout(-)

Negative output voltage

6

Trim

Output voltage trim. Leave TRIM pin open for nominal output voltage.
