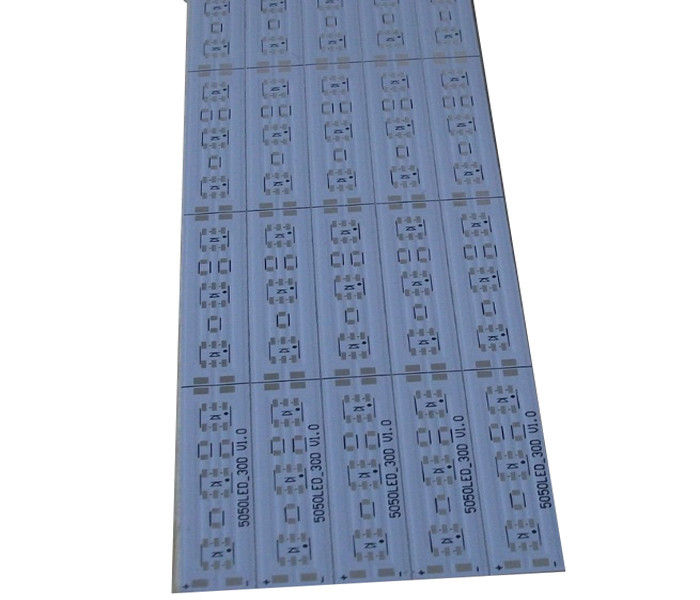

1 Layer Aluminum PCB Board Metal Core Printed Circuit for Power Supply
|
Product Name:
|
Aluminium PCB Board Metal Core Printed Circuits
|
Material:
|
Aluminium 5052
|
|
Layer Count:
|
1 Layers
|
Board Thickness:
|
1.5mm
|
|
Copper Thickness:
|
1oz
|
Surface Finish:
|
Immersion Gold
|
|
Board Size:
|
300mmx55mm
|
Applications:
|
Power Supply Devices
|
Description:
Aluminium PCB board (also aluminum PCB, al PCB, aluminium base PCB, aluminium based PCB, metal core printed circuits… ) is a unique metal base copper clad laminate, it is with good thermal conductivity, electrical insulation and mechanical processing properties. Aluminium PCB Board printed circuits is the best performance and the cheapest cooling solutions.
Aluminium PCB Board Advantage:
1. Dissipation of heat without using additional heatsinks.
2. Mechanically rigid, increasing the physical strength of the assembly
3. Reduces the effect of thermal stress on all components, increasing life and durability
4. Improved thermal conduction leading to versatility in component and tracking layout enabling PCB dimensions to be reduced.
5. Reduces component operating temperatures, improving reliability.
6. Substrate aluminum can be drilled / machined and routed, aiding PCB mounting
Application:
Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier,Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit,Mobile Devices,MP3 Player ,Tablet PC, Wearable Electronics, Auto Safety & Security, Automotive Equipment ,Communications and Networking, Computer Peripherals, Computer Subsystems, Computers, Industrial Power Supplies,LED Lights, Audio Equipment, Electronics, Electronics, Photography, Television, Hardware & DIY, Building, LED & Energy-efficient Lighting, Solar, Wind & Hydropower Technologies, Kitchen Appliances, Audio Equipment, Automobiles & Motorcycles, TV Tires, Diagnostic Tools, Car DVD Player, Auto Lighting System, Motorcycles Navigation & GPS , Computer, Laptops ,USB Flash Drives, CPUs Keyboards, LCD Monitors, Desktops Routers Office automation equipment,motor drive and so on.
Specification:
|
Maximum Board Size
|
23”x28”
|
|
Board Thickness
|
0.4-4.0mm
|
|
Minimum Conductor Width
|
0.10mm
|
|
Minimum Conductor Space
|
0.10mm
|
|
Minimum Hole Size
|
0.20mm
|
|
PTH Wall Thickness
|
>0.025mm
|
|
PTH Hole Diameter Tolerance
|
±0.05mm
|
|
Non PTH Hole Diameter Tolerance
|
±0.05mm
|
|
Hole Position Deviation
|
±0.076mm
|
|
Soldemask Layer Min.Bridge width
|
5mil
|
|
Soldemask film Min.Thickness
|
10mil
|
|
Insulation Resistance
|
1012Ω Normal
|
|
Peel-off Strength
|
1.4N/mm
|
|
Soldemask Abrasion
|
>5H
|
|
Soldexability Test
|
260℃20 second
|
|
E-test Voltage
|
50-250V
|
|
Permitivity
|
ε=2.1~10.0
|
|
Volume resistance
|
1014Ω-m,ASTM D257,IEC60093
|
About Agile Circuit
Based in China, Agile Circuit is specializes in printed circuits manufacturing with high quality and low cost by prototypes and low volume. Our products range includes FR4 rigid printed circuits, PCB aluminium, copper printed circuits and PCB assembly which are extensively used in communications, network, industrial control, computer applications, national defense, aerospace and medical fields.
