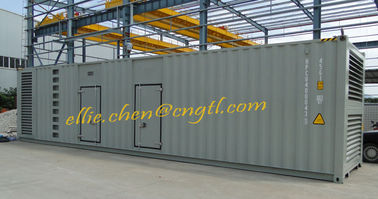

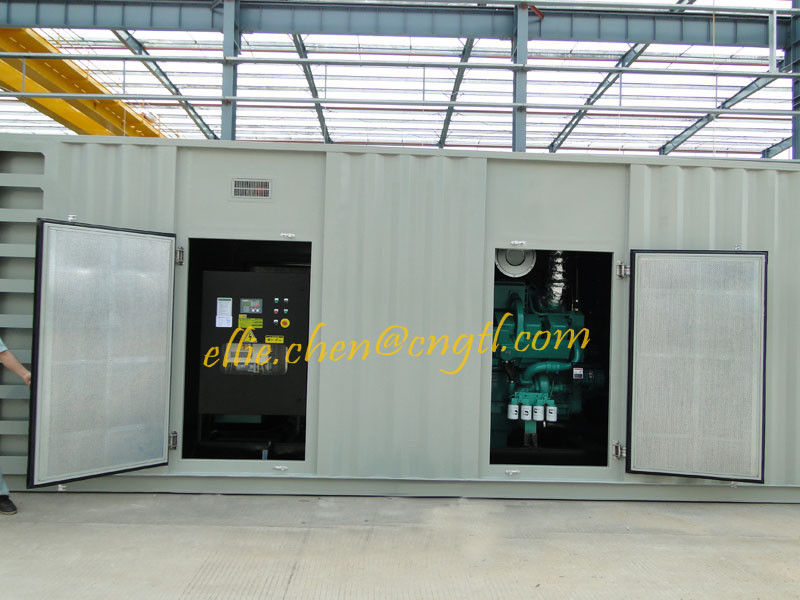

910kva Cummins industrial power supply generator

910kva Cummins industrial power supply generator

  • 910kva Cummins industrial power supply generator
  • 910kva Cummins industrial power supply generator
  • 910kva Cummins industrial power supply generator
910kva Cummins industrial power supply generator
Product Details:
Place of Origin: China
Brand Name: GTL
Certification: CE, ISO9001, ISO14001
Model Number: CCW-910T5
Controller: Deif, Woodward, Deepsea
Voltage available: 488/277V, 440/254V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: Standard export packing
Delivery Time: 20~30 days
Payment Terms: T/T, LC at sight
Supply Ability: designed
Contact Now
Detailed Product Description

910kva Cummins industrial power supply generator

Main Features:

* Low fuel consumption diesel generator

* Generator with fuel tank: 8 hours or 12 hour or optional

* Generator set with easy maintenance and spare parts availability

* Genset Standard chargers: Float battery charger and battery charger

* Generator warranty: World warranty service

* Optional accessaries: Canopy generator, ATS, Parallel operation and Synchronization system, mobile trailer generator

Genset model:  CCW-910T5
Cummins Engine:   KTA38-G2A
Stamford Alternator: LVI634D
(400V, 50Hz, 3 phase)



General Data
MODEL CCW-910T5
KW KVA
Stand-by power@50Hz 801 1001
Prime power@50Hz 728 910
Engine Data
Manufacture 　 Cummins
Model 　  KTA38-G2A
Number of Cylinders 　 6
Borexstroke mm  159x159
Rated RPM Rpm 1500
Base Output Power KW 813
Displacement L 37.8
Compression ratio 　 14.5:1
Air intake way 　 Turbocharged & Aftercooled
Governor method 　 Electrical
　
Fuel System  1500rpm
Standby power L/h 215.0
100% prime power L/h 191.0
75% prime power L/h 147.0
50% prime power L/h 98.0
Alternator Data
Model 　 Stamfrod
Model 　 LVI634D
Voltage 　 400V
Frequency 　 50Hz
Output power KVA 910
Voltage regulation 　 AVR
Number of phase 　 3
Power factor (cos phi) 　 0.8
Altitude m <1000
Ambient min-1 2250
Insulation:calsss 　 H
Bearing 　 Single
Coupling 　 Direct



Open type Genset
Dimension(L*W*H): mm 4330*2100*2450
Weight kg 7900



Containerized type Genset
Dimension(L*W*H): mm 20ft or 40ft ISO container
Weight kg 12000
