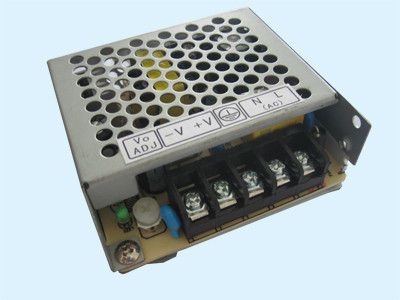

12vdc Industrial Power Supplies

12vdc Industrial Power Supplies

12vdc Industrial Power Supplies
Product Details:
Contact Now
Detailed Product Description
High Light:

high voltage power supply

,

switch mode power supply

12vdc Industrial Power Supplies



Feature:



. Universal AC input / Full Range

. No load consumption < 0.3W

. Protections: Overload, Short Circuit

. Approved by CE

. Warranty : 2 Years





Description:



12V2.1A 25W Industrial Power Supply Approved By CE Meet RoHS, REACH

Electronics Specification:

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

<0.3Ma/240Vac

Output Voltage:

12.0Vdc

Output Voltage Range:

10.80Vdc to 13.20Vdc

Output Current:

2.1A

Output power:

25.2W (Max)

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

>75%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC;O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)74*(W)68*(H)27mm

12vdc Industrial Power Supplies  0



Terminal Pin assignment:



Pin 1:  ACL

Pin 2:  ACN

Pin 3:  GND

Pin 4:  Output -V

Pin 5:  Output +V




Remark:



. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a 0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
