Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W

Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W

Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W
Product Details:
Contact Now
Detailed Product Description
High Light:

high voltage power supply

,

switch mode power supply

Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W



Feature:



. Input Voltage Range : 90~132VAC;180~264VAC

. Compliance Rohs , REACH

. Protection: Short Circuit , Over Current

. Guarantee : 2 Years

. For LED , Communication Products





Description :



150W 12V 12.5A Switch Mode Industrial Power Supply For LED

Electronics Specification :

Input Voltage Range:

90~132VAC;180~264VAC

AC current:

3.0A At 115Vac ; 1.5A At 230Vac

Frequency:

50 / 60Hz

Inrush Current:

40A / 230Vac

Leakage Current:

<0.5 mA / 240Vac

Output Voltage:

12.0Vdc

Output Voltage Range:

10.80Vdc to 13.20Vdc

Output Current:

12.5A

Output power:

150.0W (Max)

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

>84%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC;O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)199 * (W)98 * (H)38mm

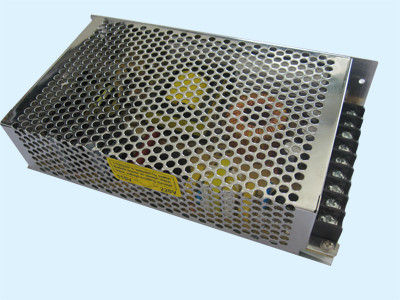

Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W 0



Remark:



. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a    0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.





Factory Show:



Single Output Industrial Power Supply 12V 12.5A For Led Driving , High Power 150W 1
