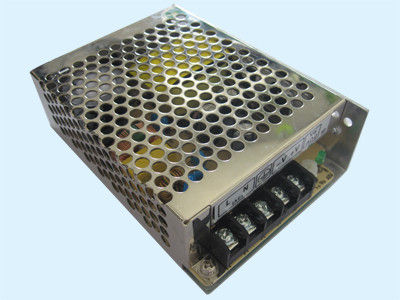

Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment

Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment

Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment
Product Details:
Contact Now
Detailed Product Description
High Light:

industrial dc power supply

,

switch mode power supply

Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment



Feature:



. Input Voltage Range : 90 ~264 Vac

. High Quality , Compesiitve Cost

. Protections: Over Current, Short Circuit

. Approved By : CE

. 2 Years Warranty

. Applied On LED Light , Communication Products





Description :



Industrial Power Supply 12V 40W For Communication Products

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

1.0A At 115Vac ; 0.5A At 230Vac

Frequency:

50 / 60Hz

Inrush Current:

30A / 230Vac

Leakage Current:

<0.5 mA / 240Vac

Output Voltage:

12.0Vdc

Output Voltage Range:

10.80Vdc to 13.20Vdc

Output Current:

3.35A

Output power:

40.2W (Max)

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

>84%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC;O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)110*(W)78*(H)35mm



Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment 0



Terminal Pin assignment:



Pin 1:  ACL

Pin 2:  ACN

Pin 3:  GND

Pin 4:  Output -V

Pin 5:  Output +V





Remark:



. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a    0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.



Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment 1

Factory Show:



Portable 220vac To 12vdc Power Supply Industry 40w For Bank Data Equipment 2
