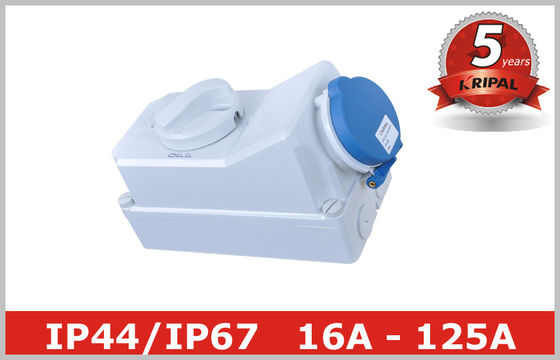

2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets

2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets

  • 2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets
  • 2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets
  • 2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets
2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKS series
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Purpose: Industrial Ampere: 16A,32A,63A, 125A
Voltage: 220V-250V; 380V-415V Protection Grade: IP44, IP67
Plastic Materials: Nylon, Rubbber Metal: Copper
High Light:

Industrial Electrical Outlets

,

32 Amp Industrial Socket

Mechanical Interlock Industrial Power Switched Sockets , Single / Three Phase





KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.





After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.





Description:



1. Raw materials are of super brand like DSM, Mitsubishi



2. The mould tooling are built in our own die center with advanced machine by professionals



3. Latest design for amazing appearance and convenient plug-in & pull-out



4. Five years warranty: any faulty items will be replaced freely



5. Testing is proceeded in our lad regularly.





Specifications:



Product

Mechanical Interlocked Switch Socket

Rated Ampere

16A, 32A, 63A, 126A

No. of poles

2P+E, 3P+E, 3P+N+E

Voltage

230V, 400V

Protection degree

IP44, IP67

Power type

Single Phase, Three phase

Conductor cross-sectional area (mm2)

1.5-4(16A); 2.5-10(32A), 6-25(63A)

Material

NYLON PA6, PC, copper

Color

RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).

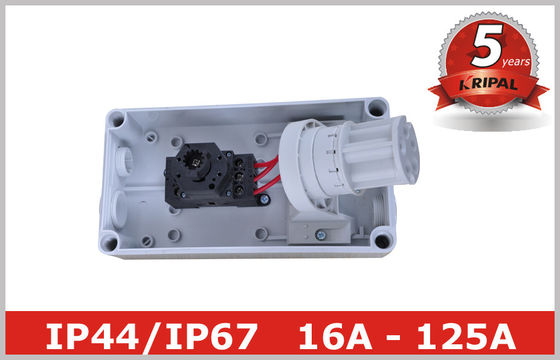

Construction Structure:



Mechanical interlock device inside

Articulated cover prevent dust and water

Compact design, cable entry hole from side or bottom

Quality brass one-piece, high conductivity

Semko certified UKP series switchgear mounted in box





2P+E,3P+E,3P+N+E Mechanical Interlock Industrial Power Switched Sockets 0





Declaration:



KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.



Why not get goods from us directly?
