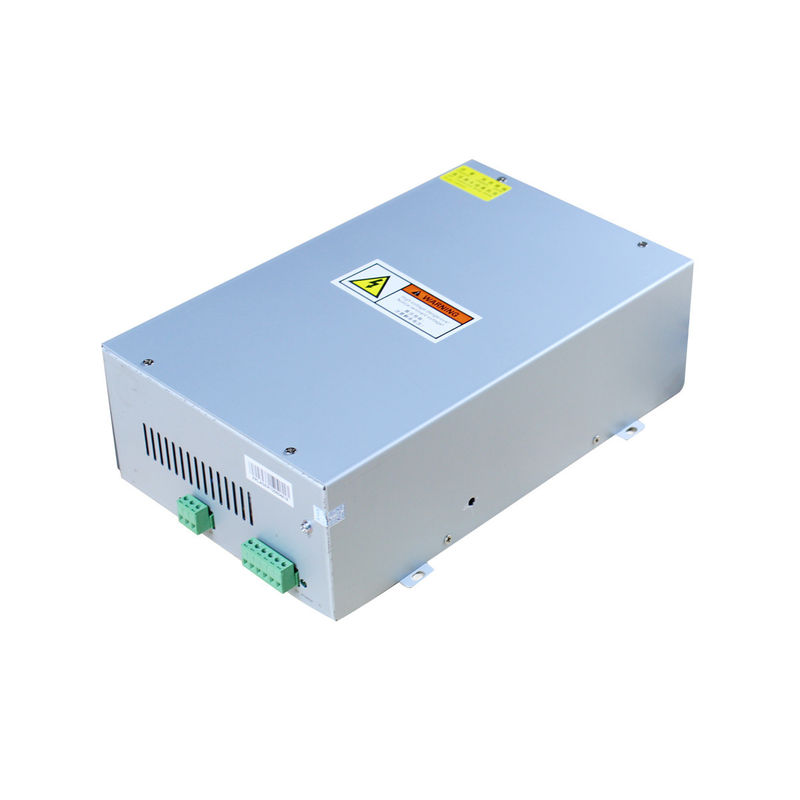

30w to 150w laser power supply / laser generator support laser cutting machine

30w to 150w laser power supply / laser generator support laser cutting machine

  • 30w to 150w laser power supply / laser generator support laser cutting machine
  • 30w to 150w laser power supply / laser generator support laser cutting machine
30w to 150w laser power supply / laser generator support laser cutting machine
Product Details:
Place of Origin: China
Brand Name: HUNST Laser
Certification: CE
Model Number: Laser power supply
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard packing for laser lens.
Payment Terms: T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Power: 30w To 150w Brand: EFR, RECI
Working Power: 220V And 110V
High Light:

laser cutting machine spare parts

,

Laser Machine parts


30w to 150w laser power supply , laser generator support all brand laser cutting machine



The laser power supply incorporates a zero-current half-bridge soft-switching circuit, ensuring high efficiency and fast response, easily compatible with various laser tubes from different manufacturers. The laser power supply is well worth buying because: the ports can be easily controlled to adapt to high and low level signals; the switch can be controlled by TTL electrical level; and the abnormal protection switch can test external water supply, ventilation, etc. And it is often used as industrial laser power supply, laser cutting machine power supply, laser engraving machine power supply, etc.



Features
1. Top quality: the materials are strictly selected (the major parts are imported); the 30W-150W laser power supply has passed multiple standard tests, low-temperature test, full-load and high-temperature tests, etc.
2. Great compatibility: the laser power supply is compatible with various sealed-off CO2 laser tubes from different manufacturers.
3. Fast response speed: the excellent speed attributes to great engraving and cutting performance and significantly extends the laser’s service life.
4. Simple and easy control: it can be controlled to adapt to high and low level signals or switched on/off by TTL electrical level; laser power can be easily controlled by 0-5 V analog signal or PWM (pulse width modulation) signal.
5. Useful safety functions: the abnormal protection switch can test external water supply, ventilation, etc; in the well-grounding circumstance, the CO2 laser power supply can work under open circuit state within a short time to avoid damages caused by laser tube burst.
6. Premium special functions: there is no need to unpack the power cover to tell whether it is working in proper operation, so it is easy to locate where the problem is when it occurs.
7. Wide applications: the power supply is ideal for engraving and cutting on artwork and craft, PMMA, leather, cloth, rubber and other materials.



Technical Parameters of Laser Power Supply

AC input voltage

AC220V or AC110V

DC input voltage

DC300V or DC150V

AC input frequency

47-440Hz

Maximum output voltage

50KV

Maximum current

20mA-38mA (depending on different laser tubes)

Power supply efficiency

91%

Over current protection

130% of maximum current

Open circuit protection

Yes (short term)

Structure

Fan cooling

High electric level control voltage range

≥3V

Low electric level control voltage range

≤0.8V

Operating temperature

-30℃ to +65℃

Relative humidity

20-85% RH (no condensation)

Voltage resistance

AC1500V1 minutes≤10mA

AC1500V1 minutes ≤10mA

Connection

Insulation resistance

≥50MΩ (DC500V)

Earth leakage current

≤1mA (AC220V) ≤0.5mA (AC110V)

Vibration resistance

Amplitude: 0.5mm frequency 10-55hz 3d direction 2 hours

MTBF

≥30,000hours

Test time at full load and 60℃

12 hours

Power supply switch test within 7 seconds

500 times

Output power

30W-150W
