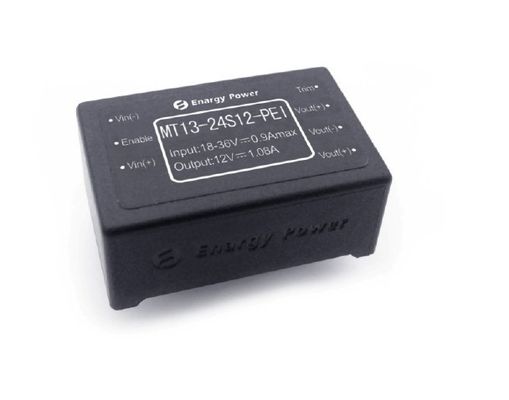

24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI

24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI

  • 24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI
24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI
Product Details:
Place of Origin: China
Brand Name: Enargy
Model Number: MT13-24S12-PEI
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
Contact Now
Detailed Product Description
High Light:

military power supplies

,

dc to dc converter module

DC-DC Converters 13W Output 12V MT13-24S12-PEI





Key Features

Output power: 13W

Wide input range:18-36Vdc

High conversion efficiency: 88%

Line regulation to ±0.5%

Load regulation to ±0.5%

Isolation voltage :1,500V

Enable (ON/OFF) control

Output over-current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim -5~+10 % Vout



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.



1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     45 Vdc Continuous, non-operating
    36 Vdc Continuous, operating
    45 Vdc Operating transient protection,<100mS
Isolation voltage     2000 Vdc Input to output
Operating Temperature -20   85 In view of PCB Temperature
Storage Temperature -30   95
Enable to Vin- Voltage -0.3   10 Vdc




1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc
Under-Voltage Lockout   17 17.5 Vdc Recovery point
16 16.5   Vdc Protect point
Maximum Input Current     0.9 A Input Vin min,Output full load
Efficiency   88   % Rated Input;Rated Load
Dissipation,standby   0.3   W No Load



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set Point 11.85 12.00 12.15 Vdc Nominal input. No Load
Output Voltage Range 11.75 12.00 12.25 Vdc
Output Current Range 0.01   1.1 A
Line Regulation   ±0.02 ±0.5 %
Load Regulation   ±0.02 ±0.50 %
Current Limit 1.15 1.4 1.70 A Output voltage 95% of nominal
Short Circuit Current 1   3 A
Ripple (RMS)   25   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   80   mV
Maximum Output Cap     3000 μF



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   100   mV 50% to 75% to 50% Iout max; (di/dt=0.1A/μs).
  100   mV 50% to 75% to 50% Iout max; (di/dt=0.3A/μs).
Dynamic recovery time   200   µS
Turn-on Time   2   mS Starting from vin to vout rise to 90%
Turn-off overshoot   2   %



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 180 200 250 KHz
Output Voltage Trim     10 % Vout Trim Up
    5 Trim Down
Enable Voltage     0.5 mA

Enable (ON/OFF) Control

Positive Logic

2.5   10 Vdc ON-Control, Logic high or floating
0   1.5 Vdc OFF-Control, Logic low
Over-Load Protection 105 130 150 % Current mode,Pulsecurrent(100% raredload)
Short-Circuit Protection     65 mΩ Hiccup mode,since the recovery
Over-Temperature Protection   105   Type: Non-Latching, Auto-Recovery;Threshold, PCB Temperature
  90   Recovery point



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc In to base
500     Vdc Out to base
Isolation Resistance 10     MΩ At 500VDC to test it when atmosphericpressure and R.H. is 90%
Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   20   g
MTBF ( calculated ) 1     MHrs TR-NWT-000332;80% load,300LFM, 40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -20   85 Base PCB temperature
Storage Temperature -30   95 Ambient temperature
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H.



4. Standards Compliance

Parameter Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
UL/cUL60950
EN60950
GB4943
IEC 61000-4-2



5. Typical Wave And Curves



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 024v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 1



Figure 1: Efficiency at nominal output voltage vs.load current for minimum, nominal, and maximuminput voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and60% rated power vs. airflow rate for ambient airtemperatures of 25°C.



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 224v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 3



Figure 3: Maximum output power derating curves vs.ambient air temperature for airflow rates of 0 LFM through400 LFM with air flowing from pin 1 to pin 3 (nominalinput voltage).

Figure 4: Output voltage ripple at nominal inputvoltage and rated load current (20 mV/div). Loadcapacitance: 0.1μF ceramic capacitor and 10μFtantalum capacitor. Bandwidth: 20 MHz.



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 4



Figure 5: Ambient temperature is 25 ℃, the loadcarried by the load (power 13W), the thermalimaging map.



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 524v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 6



Figure 6: Turn-on transient at full load (resistiveload) (100 ms/div).Input voltage pre-applied.Ch1:Vout (5V/div);Ch2:ON/OFF Input (5V/div)

Figure 7: Shut-down fall time at full load (2ms/div).Ch1:Vout (5V/div);Ch2:ON/OFF Input (5V/div)



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 724v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 8



Figure 8: Output voltage response to step-change inload current (50%-75%-50% of Iout(max); dI/dt =0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalumcapacitor and 1μF ceramic capacitor. Ch1: Vout(200mV/div)

Figure 9: Output voltage response to step-change inload current (50%-75%-50% of Iout(max): dI/dt =0.3A/μs). Load cap: 220μF, 30mΩ ESR tantalumcapacitor and 1μF ceramic cap. Ch1: Vout (200mV/div)



6. Physical Information

6.1 Mechanical Outline



24v to 12v dc to dc converter 13W Military Power Supply MT13-24S12-PEI 9



Notes:

1. All other pins are 0.6mm dia

2. Pin4 and Pin6 are parallel connection. The user could achieve the function Vout(+) whether connect either two pin orboth.

3. Tolerances: x.xx±0.02 in. (x.x±0.5mm).x.xxx±0.010 in. (x.xx±0.25mm)



6.2 Pin Designations

Pin No. Name Function
1 Vin(-) Negative Input voltage
2 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
3 Vin(+) Positive Input voltage
4 Vout(+) Positive Output Voltage
5 Vout(-) Negative Output Voltage
6 Vout(+) Positive Output Voltage
7 Trim Output Voltage Trim
