Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | China |
Brand Name: | Kimpok |
Certification: | CE/FCC/ROHS |
Model Number: | KP-MP50 |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiaiton |
Packaging Details: | export standard packing |
Delivery Time: | 3 working days |
Payment Terms: | T/T, Western Union,PayPal |
Supply Ability: | 2,000pcs per month |
Modulation: | COFDM | RF Output Power: | 5-10Watt (adjustable) |
---|---|---|---|
Frequency: | 300-800MHz(optional) | Bandwidth: | 1.25/2.5/6/7/8MHz (optional) |
Video Compression: | H.264/MEPG-4 | Size: | 200*130*60 |
High Light: | COFDM Video Transmitter,Long Range Video Transmitter |

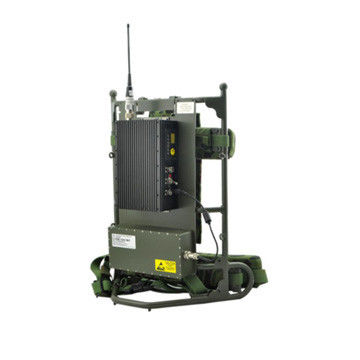

Manpack Mobile COFDM Video Transmitter , 5~8W Military Backpack Wireless Video Link
Introduction:
This military backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles,such as any building barriers,severe electromagnetic interference, remote mountain town or other harsh environments,which cause command vehicale can’t directly reach the site and forced to parked in vicinity.
At the front-end personnel, scouts,firefighters,rescue personnel or tevevision interview personnel using small size,backpack or Buckle format transmitter transmit the live signals to the rear command ehicle.Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.
Features:
Tech Specification:
Transmitter parameters
|
Receiver parameters:
Frequency |
300-800MHz(optional) |
Memory | 60G SSD |
LCD | Samgsung 17inch |
Internal Battery | 3000mA,supprot 4CH 48hours recording |
Receive sensitivity | < -105dBm |
RF Interface | N(F) |
Modulation | COFDM,2K,QPSK |
Power supply | AC220V |
Bandwidth | 2/2.5/4/8MHz(adjustable) |
Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
Video Output | 1 line PAL/NTSC analog video |
Revolution | 720×576(PAL) , 720×480(NTSC) |
Lines of horizontal | 625 or 525 Line |
Audio Output | Analog stereo left and right channels |
Data encryption | AES / ALLTECH Basic scrambling |
Voltage | AC220V±20V, DC14V~DC16V |
Work environment | -30~70° |
Size | 500*400*400mm |
Weiht | 22kg |
Product applications:
