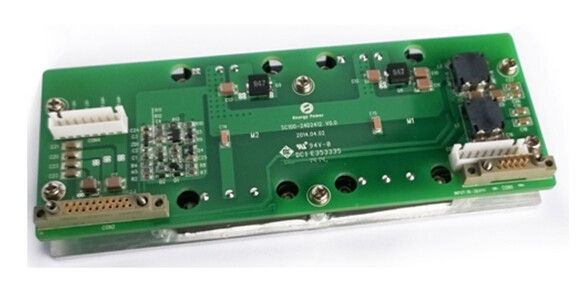

Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412

Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412

  • Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412
Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412
Product Details:
Place of Origin: China
Brand Name: Enargy
Model Number: SC100-24D2412
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
Contact Now
Detailed Product Description
High Light:

12v ac/dc power supply

AC-DC Power Supplies 100W Output 24V12V SC100-24D2412



Key Features

Input range:18~36Vdc

Dual outputs:24V/2.5A,12V/3.33A

High efficiency:90%

Line regulation: ≤±1%

Load regulation: ≤±1%

Low ripple&noise: ≤±1%

Enable (On/Off) Control

Isolation Voltage :1500Vdc

Hiccup mode short circuit protection

Output over current protection

Natural cool



Product Overview

This DC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency. Aluminum baseplate structure provides extraordinary thermal performance.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input voltage range

18

24

36

Vdc



Max. input current





6.5

A

Min. input voltage, full load

Efficiency



90



%

Rated input voltage, rated load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

24V

23.52

24

24.48

Vdc



12V

11.76

12

12.24

Vdc



Output current range

24V

0



2.5

A



12V

0



3.33

A



Line Regulation





±1

%



Load Regulation





±1

%



Ripple & noise

24V





240

mV

Rated input, full load, 20 MHz bandwidth

12V





120

mV

Rated input, full load, 20 MHz bandwidth

Dynamic response

Deviation





±4

%

25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us

Settling time





300

uS

To within 1% Vout nom.

Output voltage overshoot





5

%



Output Capacitance

24V





1800

μF



12V





3000

μF



Enable Control









External switch



Note: An external switch controls the enable function. Press the switch once under input voltage on condition, the module will power on. Press the switch again, the module will power off.



Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over load protection

24V

2.75



4.5

A

Hiccup

12V

3.5



6.5

A

Short – Circuit Protection





10

Hiccup

Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

-20



+60



Storage temperature

-40



+85



Relative humidity

20



90

%



Storage humidity

10



95

%



Altitude





3000

m





Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

1500





Vdc

1mA/1min, No arcing and breakdown

Input to ground

1500





Vac

Output to ground

500





Vdc

1mA/1min, No arcing and breakdown

Isolation resistance

Input to output

100





500Vdc/1min, normal atmospheric pressure, 90% humidity



Standards compliance

Standards

Notes

MIL-STD-704



MIL-STD-1399



MIL-STD-810



EN60950



GB4943



IEC 61000-4-2





Physical Information

Mechanical Outline

Length×width×heigth:160×60×26(mm), 6.3×2.36×1.02(in),

Isolation dual output dc-dc converter Output 24Volt 12Volt SC100-24D2412 0



Pin designations

Connect/Spec

Pin No.

Name

CON1/CY59T10BJ

1,6

Vin+

2,3,4,7,8,9

NU

5,10

VIN-

CON2/CY59Z20BJ

1

24V2(Vout-)

11

24V2(Vout+)

2

ON/OFF1

12

ON/OFF2

3,4,5,8,13,14,15,18

NU

6,16

24V1(Vout-)

7,17

24V1(Vout+)

9,19

12V(Vout-)

10,20

12V(Vout+)



Application Notes: A variety of application notes and technical white papers can be downloaded in pdf format from our website.
